Part	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Height - Seated (Max)	Size / Dimension Length	Size / Dimension Width	Turns Ratio - Secondary	Turns Ratio - Primary	Return Loss (Min)	Voltage - Isolation	Insertion Loss (Max)	Termination Style
TE Connectivity AMP Connectors 2337822-5	-40 °C	105 °C	Surface Mount
TE Connectivity AMP Connectors 5-2337822-2	-40 °C	105 °C	Surface Mount	0.285 in	0.719 in	0.482 in	1	1	-18 dB	1500 Vrns	-1 dB	Gull Wing
TE Connectivity AMP Connectors 5-2337822-1	-40 °C	105 °C	Surface Mount	0.244 in	0.5 in	0.343 in	1	1	-18 dB	1500 Vrns	-1 dB	Gull Wing

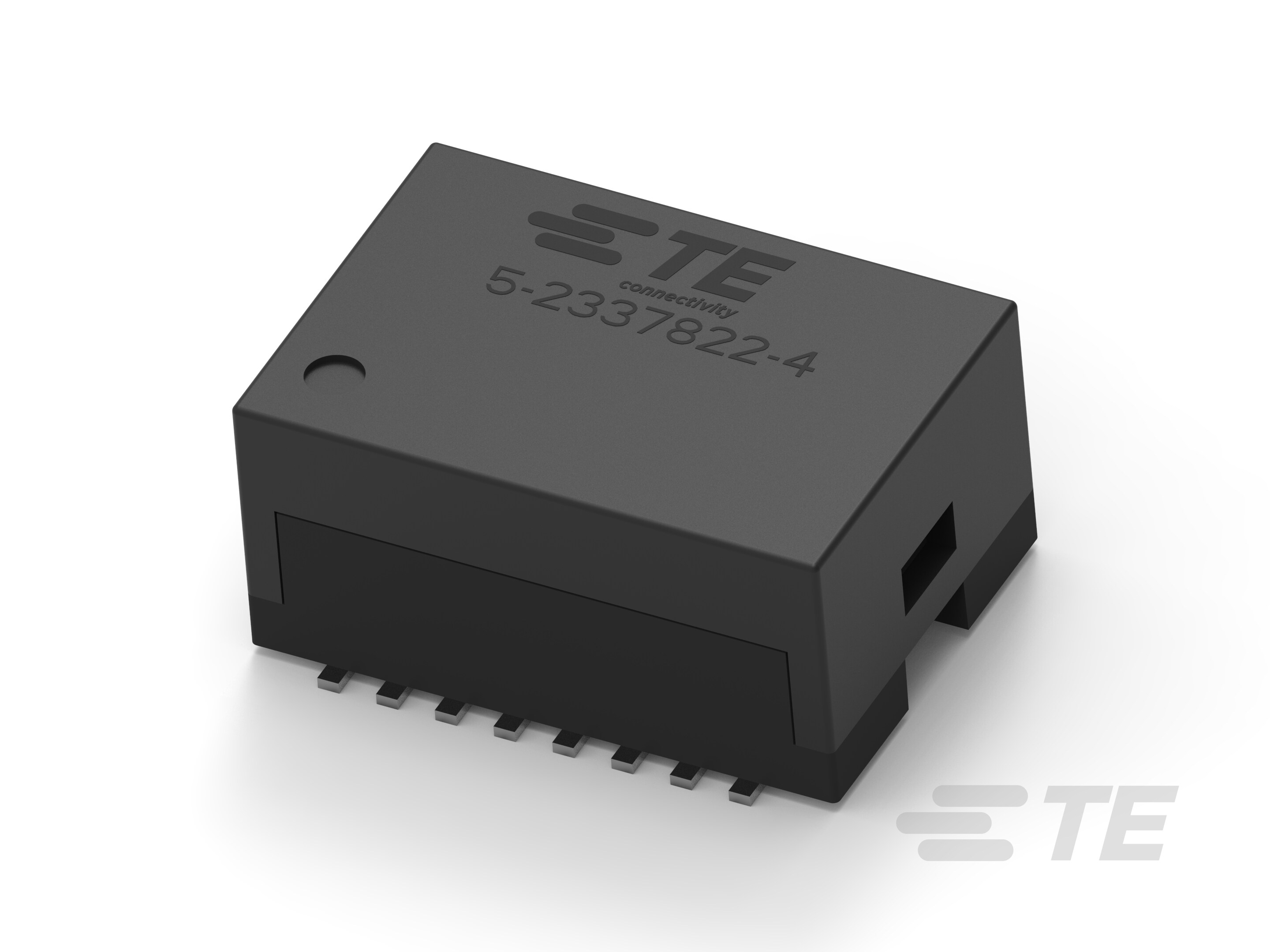

TE Connectivity AMP Connectors 5-2337822-4	-40 °C	105 °C	Surface Mount	0.244 in	0.5 in	0.343 in	1	1	-18 dB	1500 Vrns	-1 dB	Gull Wing

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
