1221-40 Series

SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical Specifications

Parameters and characteristics for this part

Specification	1221-4006

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMP
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	3 GHz
Housing Color	Gold
Impedance	50 Ohm
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

1221-40 Series

Part	Dielectric Material	Center Contact Plating	Body Material	Impedance	Connector Type	Cable Group Diameter (Default)	Cable Group	Connector Style	Shield Termination	Center Contact Material	Frequency - Max	Fastening Type	Contact Termination	Housing Color	Mounting Type	Number of Ports	Operating Temperature (Max)	Operating Temperature (Min)	Body Finish	Features	Cable Group Size

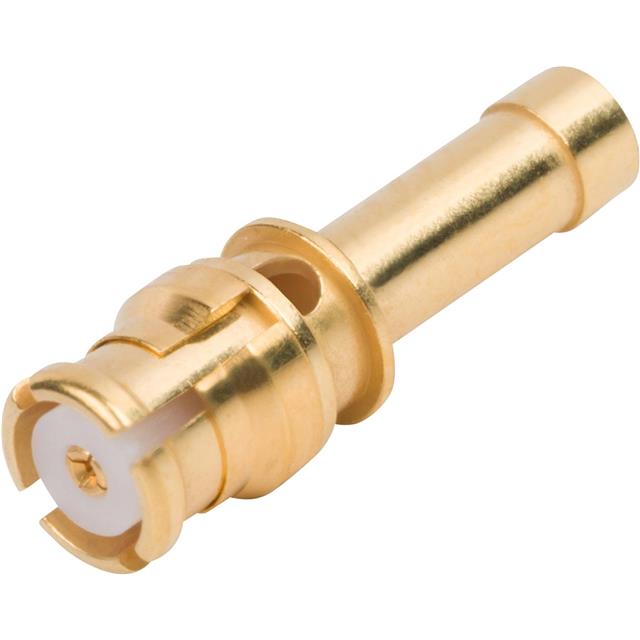

McGill Microwave Systems 1221-40049	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	50 Ohm	Female Socket Jack	0.085 in	RG-405	SMP	Solder	Beryllium Copper	40 Gbps	Bayonet Lock	Solder	Silver	Free Hanging (In-Line)	1

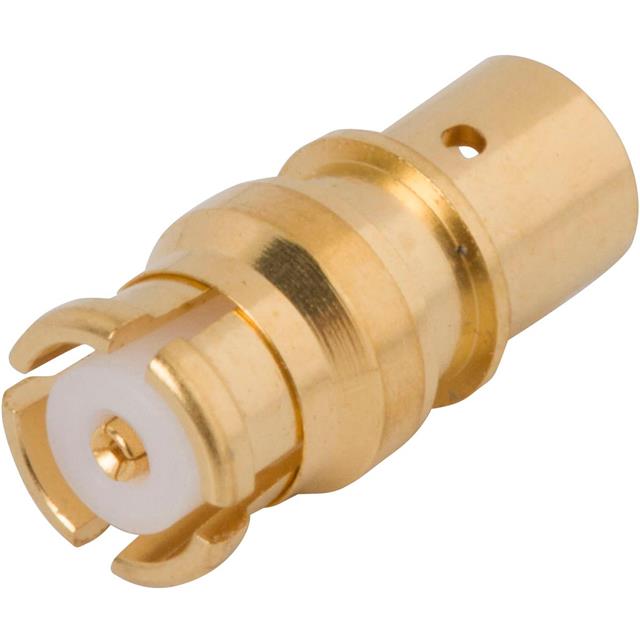

McGill Microwave Systems 1221-4005	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	50 Ohm	Female Socket Jack		316 RG-174	SMP	Solder	Beryllium Copper	3 GHz	Snap-On	Solder	Gold	Free Hanging (In-Line)	1	165 °C	-55 °C	Gold
McGill Microwave Systems 1221-40050	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	50 Ohm	Female Socket Jack	0.141 in	RG-402	SMP	Solder	Beryllium Copper	40 Gbps	Bayonet Lock	Solder	Gold	Free Hanging (In-Line)	1			Gold	EMI Ring
McGill Microwave Systems 1221-40051	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	50 Ohm	Female Socket Jack		Flexible	SMP	Solder	Beryllium Copper	40 Gbps	Bayonet Lock	Solder	Silver	Free Hanging (In-Line)	1					0.047 "
McGill Microwave Systems 1221-40115	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	50 Ohm	Female Socket Jack		Semi Rigid	SMP	Solder	Beryllium Copper	40 Gbps	Snap-On	Solder	Gold	Free Hanging (In-Line)	1	165 °C	-65 °C	Gold		0.047 "

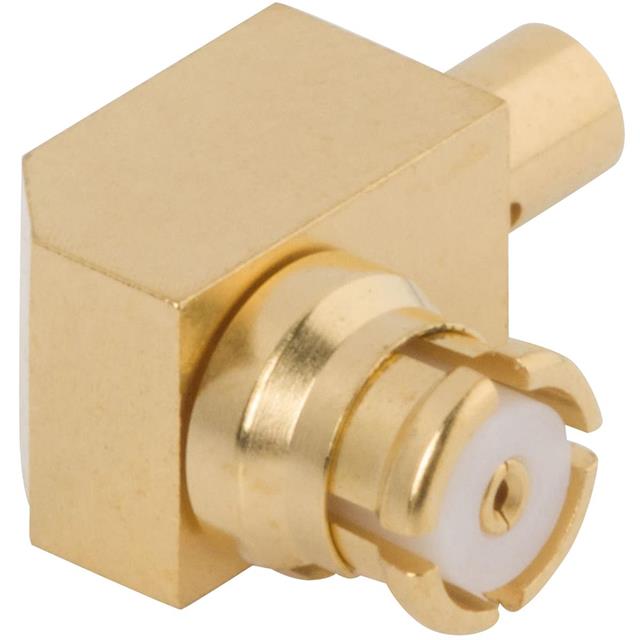

McGill Microwave Systems 1221-4006	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	50 Ohm	Female Socket Jack		316 RG-174	SMP		Beryllium Copper	3 GHz	Snap-On	Solder	Gold	Free Hanging (In-Line) Right Angle	1	125 °C	-55 °C	Gold
