98ULPA877A Series

1.8V Low-Power Wide-Range Frequency Clock Driver

Part	Package / Case	PLL	Main Purpose	Input	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Name	Package Width	Package Length	Frequency - Max	Number of Circuits	Mounting Type	Output Ratio	Input Ratio	Differential Input	Differential Output	Output	Operating Temperature (Min)	Operating Temperature (Max)
Renesas Electronics Corporation 98ULPA877AHI	52-VFBGA	Yes	DDR2 Memory	Clock	1.9 V	1.7 V	52-CABGA	7 mm	4.5 mm	410 MHz	1	Surface Mount	10	1	Yes	Yes	SSTL-18	-40 °C	85 °C
Renesas Electronics Corporation 98ULPA877AKILF	40-VFQFN Exposed Pad	Yes	DDR2 Memory	Clock	1.9 V	1.7 V	40-VFQFPN	6 mm	6 mm	410 MHz	1	Surface Mount	10	1	Yes	Yes	SSTL-18	-40 °C	85 °C
Renesas Electronics Corporation 98ULPA877AKLF	40-VFQFN Exposed Pad	Yes	DDR2 Memory	Clock	1.9 V	1.7 V	40-VFQFPN	6 mm	6 mm	410 MHz	1	Surface Mount	10	1	Yes	Yes	SSTL-18	0 °C	70 °C
Renesas Electronics Corporation 98ULPA877AHLFT	52-VFBGA	Yes	DDR2 Memory	Clock	1.9 V	1.7 V	52-CABGA	7 mm	4.5 mm	410 MHz	1	Surface Mount	10	1	Yes	Yes	SSTL-18	0 °C	70 °C

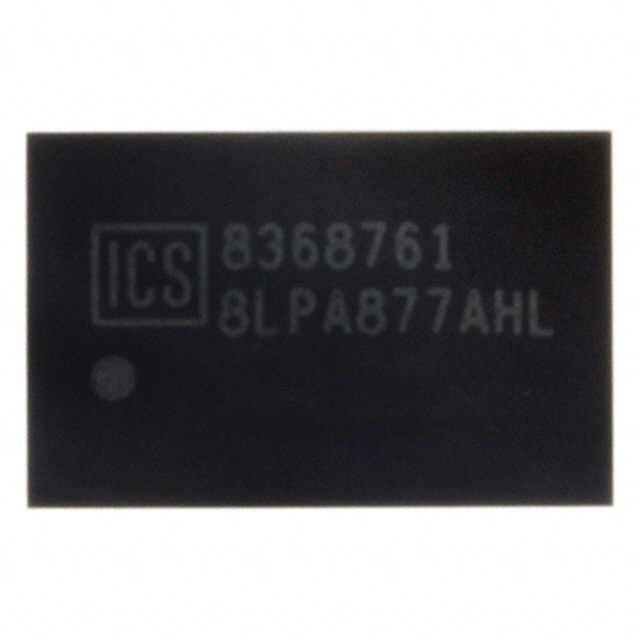

Renesas Electronics Corporation 98ULPA877AHLF	52-VFBGA	Yes	DDR2 Memory	Clock	1.9 V	1.7 V	52-CABGA	7 mm	4.5 mm	410 MHz	1	Surface Mount	10	1	Yes	Yes	SSTL-18	0 °C	70 °C
Renesas Electronics Corporation 98ULPA877AKLFT	40-VFQFN Exposed Pad	Yes	DDR2 Memory	Clock	1.9 V	1.7 V	40-VFQFPN	6 mm	6 mm	410 MHz	1	Surface Mount	10	1	Yes	Yes	SSTL-18	0 °C	70 °C
Renesas Electronics Corporation 98ULPA877AH	52-VFBGA	Yes	DDR2 Memory	Clock	1.9 V	1.7 V	52-CABGA	7 mm	4.5 mm	410 MHz	1	Surface Mount	10	1	Yes	Yes	SSTL-18	0 °C	70 °C
