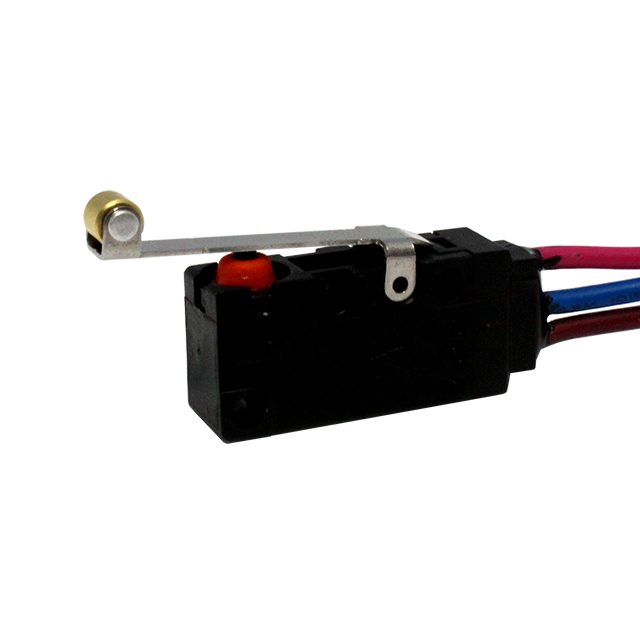

Specification	VM3SCGF1803L01

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating	6 A, 10 A
Differential Travel (Linear)	0.05 in
Electrical Life (Cycles)	50000
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	140 gf
Operating Position (Length)	0.807 in
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Overtravel (Linear)	0.039 in
Pretravel (Length)	0.1 in
Release Force	50 gf
Switch Function	On-Mom
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	36 VDC

VM3SC Series

Part	Current Rating	Electrical Life (Cycles)	Operating Force	Operating Position (Length)	Voltage Rating - DC	Mechanical Life (Cycles)	Release Force	Voltage Rating - AC	Ingress Protection Description	Ingress Protection IP Rating	Differential Travel (Linear)	Termination Style	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Switch Function	Circuit	Actuator Type	Pretravel (Length)	Overtravel (Linear)	Quick Connect Size (0.187")
CIT Relay and Switch VM3SCGF1803L00	6 A 10 A	50000	180 gf	0.581 in	36 VDC	1000000 Cycles	100 gf	125 V	Dust Tight Waterproof	IP67	0.031 in	Wire Leads	120 °C	-40 °C	Chassis Mount	On-Mom	SPDT	Round (Pin Plunger)	0.063 in	0.031 in
CIT Relay and Switch VM3SCGF3002L03	6 A 10 A	50000	180 gf	0.587 in	36 VDC	1000000 Cycles	80 gf	125 V	Dust Tight Waterproof	IP67	0.06 in	Quick Connect	120 °C	-40 °C	Chassis Mount	On-Mom	SPDT	Lever Straight	0.138 in	0.039 in	0.187 in
CIT Relay and Switch VM3SCGF3003L01	6 A 10 A	50000	210 gf	0.795 in	36 VDC	1000000 Cycles	100 gf	125 V	Dust Tight Waterproof	IP67	0.05 in	Wire Leads	120 °C	-40 °C	Chassis Mount	On-Mom	SPDT	Lever Roller	0.118 in	0.031 in
CIT Relay and Switch VM3SCGF3002L06	6 A 10 A	50000	380 gf	0.799 in	36 VDC	1000000 Cycles	160 gf	125 V	Dust Tight Waterproof	IP67	0.04 in	Quick Connect	120 °C	-40 °C	Chassis Mount	On-Mom	SPDT	Lever Roller	0.067 in	0.012 in	0.187 in
CIT Relay and Switch VM3SCQF3002L00	6 A 10 A	50000	320 gf	0.581 in	36 VDC	1000000 Cycles	250 gf	125 V	Dust Tight Waterproof	IP67	0.031 in	Quick Connect	120 °C	-40 °C	Chassis Mount	On-Mom	SPDT	Round (Pin Plunger)	0.08 in	0.024 in	0.187 in
CIT Relay and Switch VM3SCQF1803L04	6 A 10 A	50000	190 gf	0.602 in	36 VDC	1000000 Cycles	80 gf	125 V	Dust Tight Waterproof	IP67	0.04 in	Wire Leads	120 °C	-40 °C	Chassis Mount	On-Mom	SPDT	Lever Straight	0.071 in	0.02 in
CIT Relay and Switch VM3SCGF3003L06	6 A 10 A	50000	380 gf	0.799 in	36 VDC	1000000 Cycles	160 gf	125 V	Dust Tight Waterproof	IP67	0.04 in	Wire Leads	120 °C	-40 °C	Chassis Mount	On-Mom	SPDT	Lever Roller	0.067 in	0.012 in
CIT Relay and Switch VM3SCQF1803L01	6 A 10 A	50000	140 gf	0.807 in	36 VDC	1000000 Cycles	50 gf	125 V	Dust Tight Waterproof	IP67	0.05 in	Wire Leads	120 °C	-40 °C	Chassis Mount	On-Mom	SPDT	Lever Roller	0.1 in	0.039 in
CIT Relay and Switch VM3SCGF1803L01	6 A 10 A	50000	140 gf	0.807 in	36 VDC	1000000 Cycles	50 gf	125 V	Dust Tight Waterproof	IP67	0.05 in	Wire Leads	120 °C	-40 °C	Chassis Mount	On-Mom	SPDT	Lever Roller	0.1 in	0.039 in
CIT Relay and Switch VM3SCGF3002L02	6 A 10 A	50000	200 gf	0.72 in	36 VDC	1000000 Cycles	180 gf	125 V	Dust Tight Waterproof	IP67	0.06 in	Quick Connect	120 °C	-40 °C	Chassis Mount	On-Mom	SPDT	Lever Simulated Roller	0.118 in	0.024 in	0.187 in
