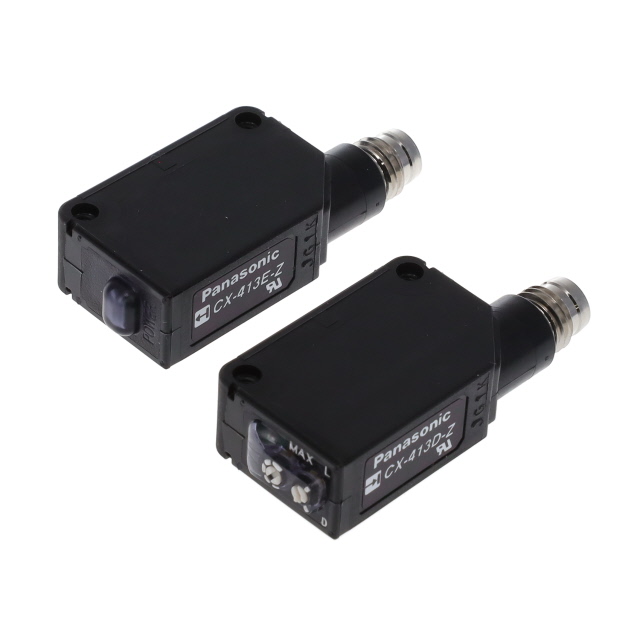

CX-413-Z

Active

Panasonic Industrial Automation Sales

SENSOR THRU-BEAM 30M NPN OPEN CL

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SENSOR THRU-BEAM 30M NPN OPEN CL

Technical Specifications

Parameters and characteristics for this part

Part	Response Time	Sensing Distance	Light Source	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Method	Ingress Protection	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Cable Length	Cable Length
Panasonic Industrial Automation Sales CX-413-J	2 ms	30 m	Infrared	12 V	24 V	Through-Beam	IP67	NPN - Open Collector	55 °C	-25 °C	4POS Connector M12
Panasonic Industrial Automation Sales CX-413-Z	2 ms	30 m	Infrared	12 V	24 V	Through-Beam	IP67	NPN - Open Collector	55 °C	-25 °C	4POS Connector M8
Panasonic Industrial Automation Sales CX-413-P-J	2 ms	30 m	Infrared	12 V	24 V	Through-Beam	IP67	PNP - Open Collector	55 °C	-25 °C	4POS Connector M12
Panasonic Industrial Automation Sales CX-413-P-C5	2 ms	30 m	Infrared	12 V	24 V	Through-Beam	IP67	PNP - Open Collector	55 °C	-25 °C	Cable	196.85 in	5 m
Panasonic Industrial Automation Sales CX-413-P	2 ms	30 m	Infrared	12 V	24 V	Through-Beam	IP67	PNP - Open Collector	55 °C	-25 °C	Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 30m NPN - Open Collector

Technical documentation and resources

No documents available
