Connectors, Interconnects

D38999/26KB35SN

Active

Amphenol Aerospace Operations

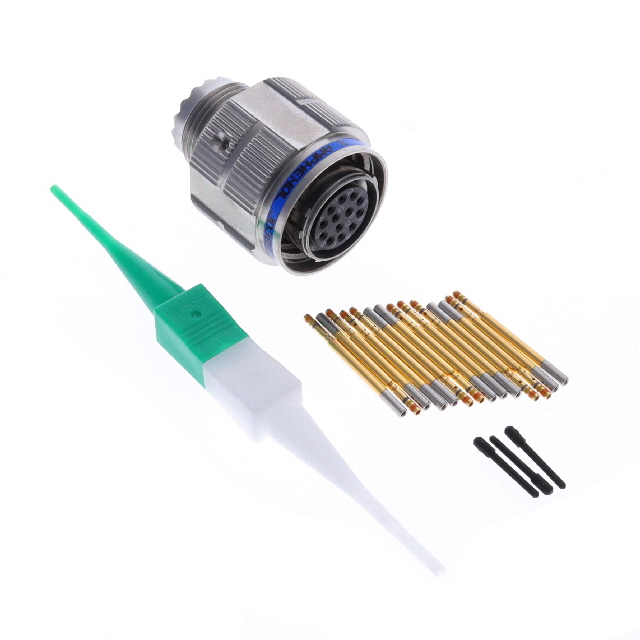

CONN PLUG FMALE 13POS GOLD CRIMP

Connectors, Interconnects

D38999/26KB35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 13POS GOLD CRIMP

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26KB35SN

Applications	Military, Aerospace, Marine, Aviation
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating	5 A
Fastening Type	Threaded
Features	Coupling Nut, Firewall Usage
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	13
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-65 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Material	Stainless Steel
Shell Size - Insert (Maximum)	35
Shell Size - Insert (Minimum)	11
Shell Size (MIL)	B
Shielding	Shielded
Termination	Crimp

D38999/26KB Series

Part	Termination	Contact Finish - Mating	Features	Primary Material	Grade	Orientation	Fastening Type	Ingress Protection	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Size (MIL)	Shell Material	Connector Type	Number of Positions	Mounting Type	Shielding	Applications	Qualification	Contact Finish Thickness - Mating	Shell Finish	Shell Size - Insert Width	Shell Size - Insert Length	Insert Material	Color	Contact Size	Housing Color	Type	Contact Type	Contact Shape	Note	Current Rating	Voltage Rating	Material Flammability Rating	Ingress Protection Description	Ingress Protection IP Rating
Amphenol Aerospace Operations D38999/26KB99JN	Crimp	Gold	Coupling Nut Firewall Usage	Metal	Military	N (Normal)	Threaded	Environment Resistant	Copper Alloy	200 °C	-65 °C	99	11	B	Stainless Steel	Female Sockets Plug	7	Free Hanging (In-Line)	Shielded	Aerospace Aviation Military	MIL-DTL-38999 Series III	100 µin	Passivated
Amphenol Aerospace Operations D38999/26KB2SA	Crimp	Gold	Coupling Nut Firewall Usage Self Locking	Metal	Military	A	Threaded	Environment Resistant	Copper Alloy	200 °C	-65 °C			B	Stainless Steel	Female Sockets Plug	2	Free Hanging (In-Line)	Shielded	Aviation Marine Military	MIL-DTL-38999 Series III	50 µin	Passivated	2 mm	11 mm
Amphenol Aerospace Operations D38999/26KB99SN	Crimp	Gold	Coupling Nut Firewall Usage	Metal	Military	N (Normal)	Threaded	Environment Resistant	Copper Alloy	200 °C	-65 °C	99	11	B	Stainless Steel	Female Sockets Plug	7	Free Hanging (In-Line)	Shielded	Aerospace Aviation Marine Military	MIL-DTL-38999 Series III	50 µin				Thermoplastic	Silver
Amphenol Aerospace Operations D38999/26KB98HB-LC			Coupling Nut Firewall Usage Self Locking		Military	B	Threaded	Environment Resistant		200 °C	-65 °C	98	11	B	Stainless Steel	Plug Housing	6	Free Hanging (In-Line)	Shielded		MIL-DTL-38999 Series III		Passivated					20	Silver	For Male Pins	Crimp	Circular	Contacts Not Included
Amphenol Aerospace Operations D38999/26KB98SN	Crimp	Gold	Coupling Nut Firewall Usage	Metal	Military	N (Normal)	Threaded	Environment Resistant	Copper Alloy	200 °C	-65 °C	98	11	B	Stainless Steel	Female Sockets Plug	6	Free Hanging (In-Line)	Shielded	Aerospace Aviation Marine Military	MIL-DTL-38999 Series III	50 µin					Silver							7.5 A
Amphenol Aerospace Operations D38999/26KB35PN	Crimp	Gold	Coupling Nut Firewall Usage	Metal	Military	N (Normal)	Threaded	Environment Resistant	Copper Alloy	200 °C	-65 °C			B	Stainless Steel	Male Pins Plug	13	Free Hanging (In-Line)	Shielded	Aerospace Aviation Military	MIL-DTL-38999 Series III	50 µin	Passivated			Thermoplastic	Silver							5 A	500 V	UL94 V-0
Amphenol Aerospace Operations D38999/26KB2SN	Crimp	Gold	Coupling Nut	Metal	Military	N (Normal)	Threaded		Copper Alloy	200 °C	-65 °C			B	Stainless Steel	Female Sockets Plug	2	Free Hanging (In-Line)	Shielded	Aviation Marine Military	MIL-DTL-38999 Series III	50 µin	Passivated			Thermoplastic								13 A			Dust Tight Waterproof	IP67
Amphenol Aerospace Operations D38999/26KB2BN			Coupling Nut Firewall Usage Self Locking		Military	N (Normal)	Threaded	Environment Resistant		200 °C	-65 °C			B	Stainless Steel	Plug Housing	2	Free Hanging (In-Line)	Shielded		MIL-DTL-38999 Series III		Passivated	2 mm	11 mm			16 S	Silver	For Female Sockets	Crimp	Circular	Contacts Not Included
Amphenol Aerospace Operations D38999/26KB35SN	Crimp	Gold	Coupling Nut Firewall Usage	Metal	Military	N (Normal)	Threaded	Environment Resistant	Copper Alloy	200 °C	-65 °C	35	11	B	Stainless Steel	Female Sockets Plug	13	Free Hanging (In-Line)	Shielded	Aerospace Aviation Marine Military	MIL-DTL-38999 Series III	50 µin					Silver							5 A
Amphenol Aerospace Operations D38999/26KB2HA-LC			Coupling Nut Firewall Usage Self Locking		Military	A	Threaded	Environment Resistant		200 °C	-65 °C			B	Stainless Steel	Plug Housing	2	Free Hanging (In-Line)	Shielded		MIL-DTL-38999 Series III		Passivated	2 mm	11 mm			16 S	Silver	For Male Pins	Crimp	Circular	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

CAD

3D models and CAD resources for this part

Description

General part information

D38999/26KB Series

13 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet
