MS3122E12-10S

Active

ITT Cannon, LLC

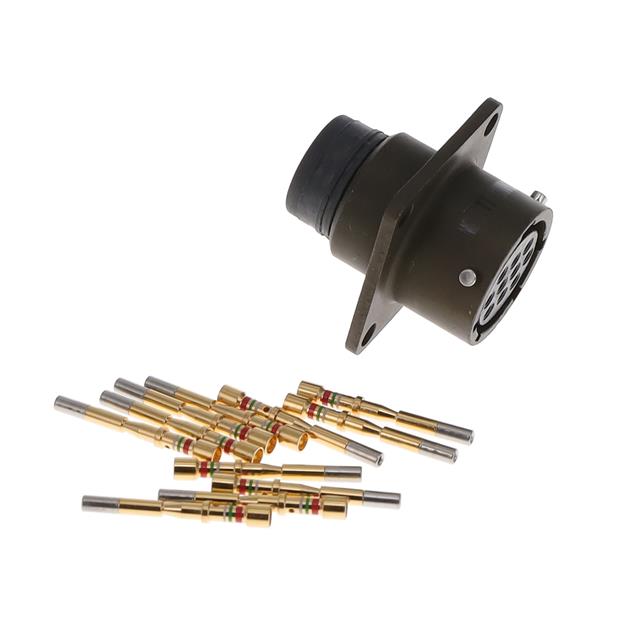

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3122 SERIES, BOX MOUNT RECEPTACLE, 10 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MS3122E12-10S

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3122 SERIES, BOX MOUNT RECEPTACLE, 10 CONTACTS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3122E12-10S

Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Termination	Crimp
Voltage Rating	600 VAC, 850 V

MS3122E12 Series

Part	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Ingress Protection	Connector Type	Orientation	Termination	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Positions	Shell Finish	Mounting Feature	Current Rating (Amps)	Voltage Rating	Primary Material
ITT Cannon, LLC MS3122E12-10S	Bayonet Lock	1.27 µm	50 µin	Olive Drab	Environment Resistant	Receptacle Female Sockets	N	Crimp	Aluminum Alloy	-55 °C	125 °C	Gold	10	Olive Drab Cadmium	Flange	7.5 A	600 VAC 850 V	Metal
