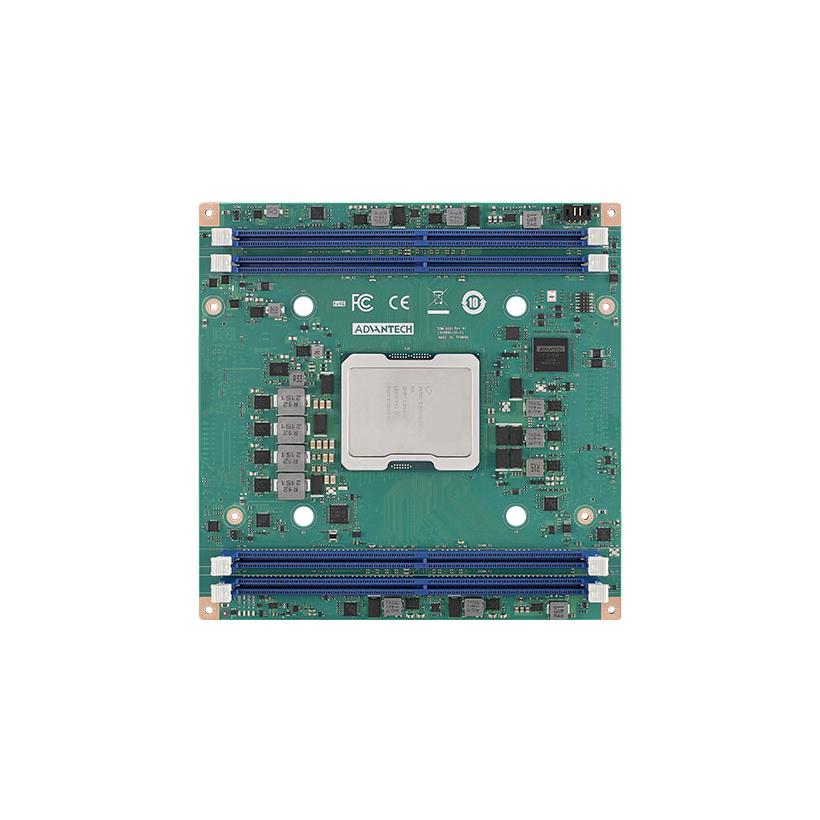

SOM-D580D16-U0A1

Active

Advantech Corp

SBC 3.1GHZ 16 CORE 512GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 3.1GHZ 16 CORE 512GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	SOM-D580D16-U0A1

Cooling Type	Fan
Core Processor	D-2775TE
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	I2C, SATA, GPIO, PCIe, SMBus
Form Factor	COM-HPC® Server Size D
Number of Cores	16
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	178.11 W
RAM Capacity/Installed [custom]	512 GB
RAM Capacity/Installed [custom]	0 GB
Size / Dimension [x]	160 mm
Size / Dimension [x]	6.299 "
Size / Dimension [y]	160 mm
Size / Dimension [y]	6.299 in
Speed	3.1 GHz
Storage Interface	SATA 3.0 (2)
USB	USB 2.0 (4), USB 3.2 (4)
Watchdog Timer	True

Part	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	Core Processor	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ethernet	Speed	Form Factor	Number of Cores	Watchdog Timer	Power (Watts)	USB	Cooling Type	Expansion Site/Bus	Storage Interface	Operating Temperature [Max]	Operating Temperature [Min]
Advantech Corp SOM-D580D16-U0A1	512 GB	0 GB	D-2775TE	160 mm	160 mm	6.299 in	6.299 "	10 Mbps 100 Mbps 1000 Mbps	3.1 GHz	COM-HPC® Server Size D	16		178.11 W	USB 2.0 (4) USB 3.2 (4)	Fan	GPIO I2C PCIe SATA SMBus	SATA 3.0 (2)	60 °C	0 °C
Advantech Corp SOM-D580D20-U0A1	512 GB	0 GB	D-2796TE	160 mm	160 mm	6.299 in	6.299 "	10 Mbps 100 Mbps 1000 Mbps	3.1 GHz	COM-HPC® Server Size D	20		178.11 W	USB 2.0 (4) USB 3.2 (4)	Fan	GPIO I2C PCIe SATA SMBus	SATA 3.0 (2)	60 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4000.00

General part information

Single Board Computer 3.1GHz 16 Core 512GB/0GB RAM D-2775TE

Technical documentation and resources

No documents available
