Q-0J03I0005012i

Active

Amphenol Custom Cable

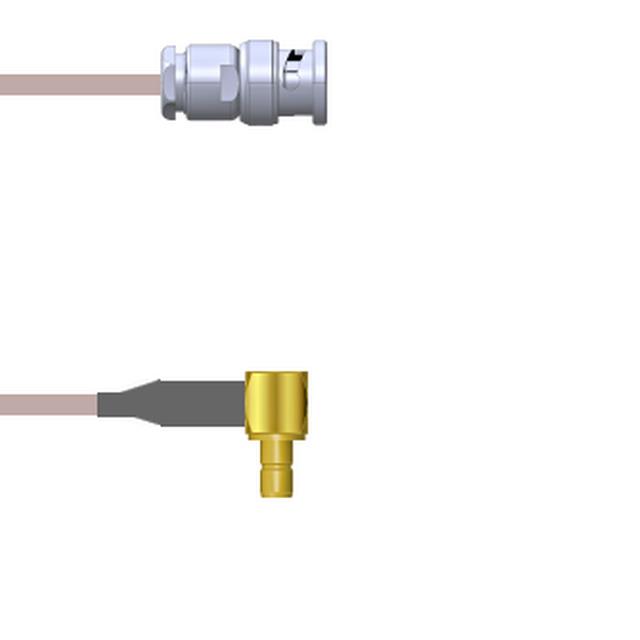

CBL ASSY BNC-SMB PLUG-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J03I0005012i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J03I0005012i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0J03I0 Series

Part	Color	Features	Style	1st Connector Mounting Type	Cable Type	Frequency - Max [Max]	Length	Length	2nd Connector Mounting Type	2nd Contact Gender	1st Contact Gender	2nd Connector	Overall Impedance	1st Connector	Length
Amphenol Custom Cable Q-0J03I0003003i	Black	Shielded	BNC to SMB	Free Hanging (In-Line)	RG-174	4 GHz	3 in	76.2 mm	Free Hanging (In-Line)	Female	Male	SMB Jack Right Angle	50 Ohms	BNC Plug
Amphenol Custom Cable Q-0J03I0005006i	Copper	Shielded	BNC to SMB	Free Hanging (In-Line)	RG-316	4 GHz	6 in	152.4 mm	Free Hanging (In-Line)	Female	Male	SMB Jack Right Angle	50 Ohms	BNC Plug
Amphenol Custom Cable Q-0J03I0005048i	Copper	Shielded	BNC to SMB	Free Hanging (In-Line)	RG-316	4 GHz	48 in	1200 mm	Free Hanging (In-Line)	Female	Male	SMB Jack Right Angle	50 Ohms	BNC Plug	4 ft
Amphenol Custom Cable Q-0J03I0003.75M	Black	Shielded	BNC to SMB	Free Hanging (In-Line)	RG-174	4 GHz	29.53 "	750 mm	Free Hanging (In-Line)	Female	Male	SMB Jack Right Angle	50 Ohms	BNC Plug
Amphenol Custom Cable Q-0J03I0003060i	Black	Shielded	BNC to SMB	Free Hanging (In-Line)	RG-174	4 GHz	5 '	1.5 m	Free Hanging (In-Line)	Female	Male	SMB Jack Right Angle	50 Ohms	BNC Plug	5 ft
Amphenol Custom Cable Q-0J03I00052.5M	Copper	Shielded	BNC to SMB	Free Hanging (In-Line)	RG-316	4 GHz	98.4 in	2.5 m	Free Hanging (In-Line)	Female	Male	SMB Jack Right Angle	50 Ohms	BNC Plug	8.2 '
Amphenol Custom Cable Q-0J03I0005002M	Copper	Shielded	BNC to SMB	Free Hanging (In-Line)	RG-316	4 GHz	78.7 in	2 m	Free Hanging (In-Line)	Female	Male	SMB Jack Right Angle	50 Ohms	BNC Plug	6.6 ft
Amphenol Custom Cable Q-0J03I00032.5M	Black	Shielded	BNC to SMB	Free Hanging (In-Line)	RG-174	4 GHz	98.4 in	2.5 m	Free Hanging (In-Line)	Female	Male	SMB Jack Right Angle	50 Ohms	BNC Plug	8.2 '
Amphenol Custom Cable Q-0J03I0005.75M	Copper	Shielded	BNC to SMB	Free Hanging (In-Line)	RG-316	4 GHz	29.53 "	750 mm	Free Hanging (In-Line)	Female	Male	SMB Jack Right Angle	50 Ohms	BNC Plug
Amphenol Custom Cable Q-0J03I0005012i	Copper	Shielded	BNC to SMB	Free Hanging (In-Line)	RG-316	4 GHz	12 "	304.8 mm	Free Hanging (In-Line)	Female	Male	SMB Jack Right Angle	50 Ohms	BNC Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 92.92
		25	$ 91.11
		50	$ 89.31
		100	$ 87.50
		250	$ 85.69

Description

General part information

Q-0J03I0 Series

Cable Assembly Coaxial BNC to SMB RG-316 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
