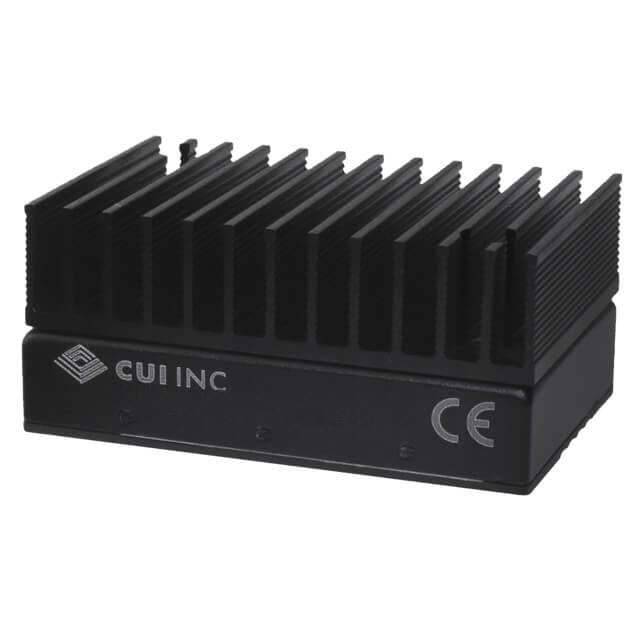

PRQ100W-Q48-S5-H-D

CUI Inc.

DC DC CONVERTER 5V 100W

Deep-Dive with AI

Search across all available documentation for this part.

PRQ100W-Q48-S5-H-D

CUI Inc.

DC DC CONVERTER 5V 100W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRQ100W-Q48-S5-H-D

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	20 A
Efficiency	93 %
Features	Heat Sink
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	100 W
Size / Dimension [x]	2.43 in
Size / Dimension [x]	61.8 mm
Size / Dimension [y]	40.2 mm
Size / Dimension [y]	1.58 in
Size / Dimension [z]	27.7 mm
Size / Dimension [z]	1.09 "
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	5 V

PRQ100W Series

Part	Voltage - Isolation	Approval Agency	Power (Watts)	Applications	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output 1	Efficiency	Number of Outputs	Type	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]
CUI Inc. PRQ100W-Q48-S12-H-D	2250 VDC	CE	100 W	ITE (Commercial)	Through Hole	75 V	Quarter Brick	12 V	93 %	1	Isolated Module	18 V	27.7 mm	40.2 mm	2.43 in	1.09 "	61.8 mm	1.58 in	Quarter Brick	Heat Sink	85 °C	-40 °C	8.3 A
CUI Inc. PRQ100W-Q24-S15-H-D	2250 VDC	CE	101 W	ITE (Commercial)	Through Hole	36 V	Quarter Brick	15 V	90 %	1	Isolated Module	9 V	27.7 mm	40.2 mm	2.43 in	1.09 "	61.8 mm	1.58 in	Quarter Brick	Heat Sink	85 °C	-40 °C	6.7 A
CUI Inc. PRQ100W-Q48-S48-H-D	2250 VDC	CE	101 W	ITE (Commercial)	Through Hole	75 V	Quarter Brick	48 V	93 %	1	Isolated Module	18 V	27.7 mm	40.2 mm	2.43 in	1.09 "	61.8 mm	1.58 in	Quarter Brick	Heat Sink	85 °C	-40 °C	2.1 A
CUI Inc. PRQ100W-Q48-S5-H-D	2250 VDC	CE	100 W	ITE (Commercial)	Through Hole	75 V	Quarter Brick	5 V	93 %	1	Isolated Module	18 V	27.7 mm	40.2 mm	2.43 in	1.09 "	61.8 mm	1.58 in	Quarter Brick	Heat Sink	85 °C	-40 °C	20 A
CUI Inc. PRQ100W-Q24-S12-B-D	2250 VDC	CE	100 W	ITE (Commercial)	Through Hole	36 V	Quarter Brick	12 V	90 %	1	Isolated Module	9 V	14.6 mm	56 mm	2.44 in	0.57 "	62 mm	2.2 in	Quarter Brick	Baseplate	85 °C	-40 °C	8.3 A
CUI Inc. PRQ100W-Q24-S15-D	2250 VDC	CE	101 W	ITE (Commercial)	Through Hole	36 V	Quarter Brick	15 V	90 %	1	Isolated Module	9 V	12.7 mm	40.2 mm	2.43 in	0.5 in	61.8 mm	1.58 in	Quarter Brick		85 °C	-40 °C	6.7 A
CUI Inc. PRQ100W-Q48-S24-D	2250 VDC	CE	101 W	ITE (Commercial)	Through Hole	75 V	Quarter Brick	24 V	93 %	1	Isolated Module	18 V	12.7 mm	40.2 mm	2.43 in	0.5 in	61.8 mm	1.58 in	Quarter Brick		85 °C	-40 °C	4.2 A
CUI Inc. PRQ100W-Q48-S48-D	2250 VDC	CE	101 W	ITE (Commercial)	Through Hole	75 V	Quarter Brick	48 V	93 %	1	Isolated Module	18 V	12.7 mm	40.2 mm	2.43 in	0.5 in	61.8 mm	1.58 in	Quarter Brick		85 °C	-40 °C	2.1 A
CUI Inc. PRQ100W-Q24-S15-B-D	2250 VDC	CE	101 W	ITE (Commercial)	Through Hole	36 V	Quarter Brick	15 V	90 %	1	Isolated Module	9 V	14.6 mm	56 mm	2.44 in	0.57 "	62 mm	2.2 in	Quarter Brick	Baseplate	85 °C	-40 °C	6.7 A
CUI Inc. PRQ100W-Q48-S15-D	2250 VDC	CE	101 W	ITE (Commercial)	Through Hole	75 V	Quarter Brick	15 V	94 %	1	Isolated Module	18 V	12.7 mm	40.2 mm	2.43 in	0.5 in	61.8 mm	1.58 in	Quarter Brick		85 °C	-40 °C	6.7 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 89.52

Description

General part information

PRQ100W Series

Isolated Module DC DC Converter 1 Output 5V 20A 18V - 75V Input
