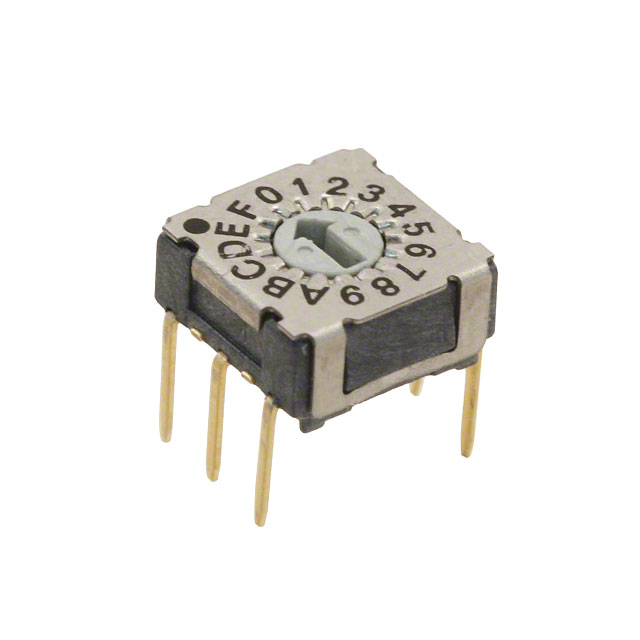

RDMAR16P1T
ActiveE-Switch
SWITCH ROTARY DIP HEX 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
RDMAR16P1T
ActiveE-Switch
SWITCH ROTARY DIP HEX 0.1A 42V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RDMAR16P1T |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 25000 Steps |
| Features | IP67 - Dust Tight, Waterproof |
| Height Above Board | 3.66 mm |
| Height Above Board | 0.144 in |
| Length [x] | 0.291 in |
| Length [x] | 7.4 mm |
| Mechanical Life | 25000 Steps |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -60 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 42 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.61 | |
| 10 | $ 4.42 | |||
| 70 | $ 3.74 | |||
| 140 | $ 3.49 | |||
| 280 | $ 3.17 | |||
| 560 | $ 2.94 | |||
| 1050 | $ 2.73 | |||
| 2520 | $ 2.48 | |||
Description
General part information
RDMAR16 Series
Dip Switch Hexadecimal 16 Position Through Hole Rotary for Tool Actuator 100mA 42VDC
