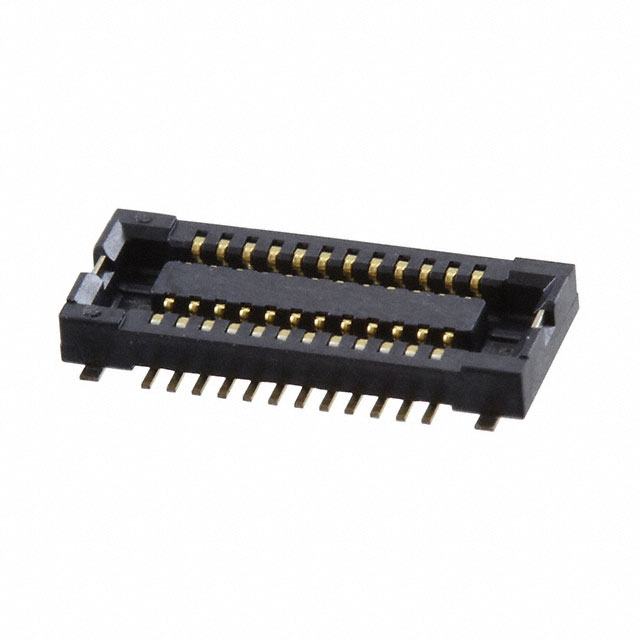

AXT524124A

Active

Panasonic Electric Works

CONN SOCKET 24POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 24POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT524124A

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.97 mm
Height Above Board	0.038 in
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	24
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Mounting Type	Mated Stacking Heights	Number of Rows	Height Above Board	Height Above Board	Connector Type	Features	Number of Positions	Pitch [x]	Pitch [x]
Panasonic Electric Works AXT524124A	Gold	Surface Mount	1 mm	2	0.97 mm	0.038 in	Outer Shroud Contacts Socket	Solder Retention	24	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
