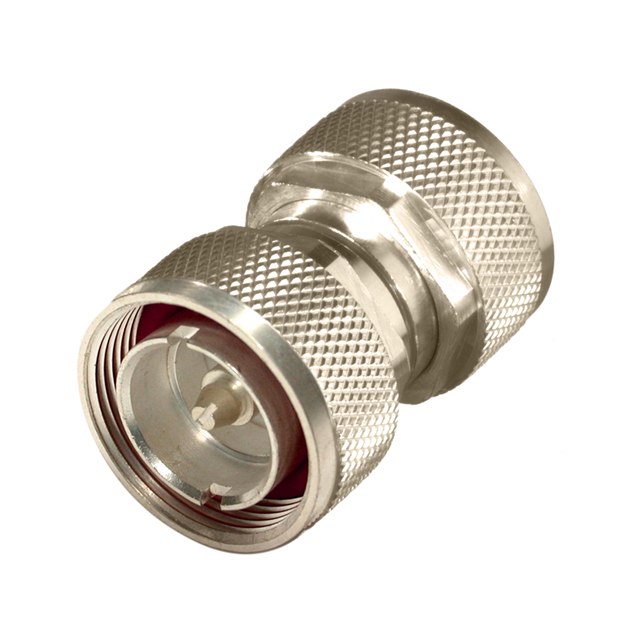

RFD-1650-2

Active

RF Industries

7/16 DIN MALE-7/16 DIN MALE

Search across all available documentation for this part.

Active

RF Industries

7/16 DIN MALE-7/16 DIN MALE

Technical Specifications

Parameters and characteristics for this part

Specification	RFD-1650-2

Adapter Series	7/16 DIN to 7/16 DIN
Adapter Type	Plug to Plug
Body Finish	Silver
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	7/16 Plug, Male Pin
Convert To (Adapter End)	Male Pin, 7/16 Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

7/16 DIN MALE-7/16 DIN MALE

Part	Mounting Type	Style	Adapter Series	Adapter Type	Center Gender	Convert From (Adapter End)	Body Finish	Conversion Type	Convert To (Adapter End)	Center Contact Plating	Dielectric Material	Frequency - Max [Max]	Impedance	Body Material	Center Contact Material
RF Industries RFD-1650-2	Free Hanging (In-Line)	Straight	7/16 DIN to 7/16 DIN	Plug to Plug	Male to Male	7/16 Plug, Male Pin	Silver	Same Series	7/16 Plug, Male Pin	Silver	Polytetrafluoroethylene (PTFE)	7.5 GHz	50 Ohms	Brass	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 7/16 Plug, Male Pin To 7/16 Plug, Male Pin 50 Ohms
