817-22-034-30-001101

Active

Mill-Max Manufacturing Corp.

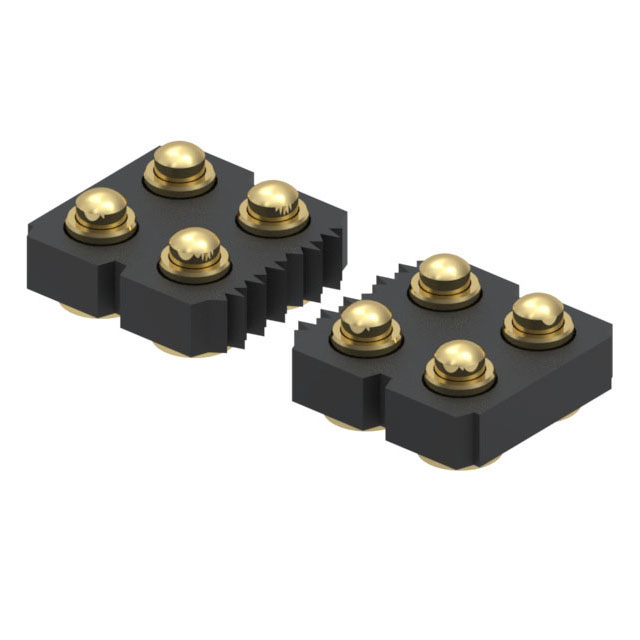

CONN SPRING PISTON 34POS SMD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 34POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Connector Type	Material	Number of Contacts	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 817-22-054-30-001101	Surface Mount	Piston	Copper Alloy	54	0.51 µm	20 µin	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Gold
Mill-Max Manufacturing Corp. 817-22-018-30-001101	Surface Mount	Piston	Copper Alloy		0.51 µm	20 µin	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Gold
Mill-Max Manufacturing Corp. 817-22-072-30-001101	Surface Mount	Piston	Copper Alloy		0.51 µm	20 µin	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Gold
Mill-Max Manufacturing Corp. 817-22-044-30-001101	Surface Mount	Piston	Copper Alloy	44	0.51 µm	20 µin	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Gold
Mill-Max Manufacturing Corp. 817-22-004-30-001101	Surface Mount	Piston	Copper Alloy		0.51 µm	20 µin	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Gold	4
Mill-Max Manufacturing Corp. 817-22-012-30-001101	Surface Mount	Piston	Copper Alloy	12	0.51 µm	20 µin	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Gold
Mill-Max Manufacturing Corp. 817-22-034-30-001101	Surface Mount	Piston	Copper Alloy		0.51 µm	20 µin	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Gold
Mill-Max Manufacturing Corp. 817-22-064-30-001101	Surface Mount	Piston	Copper Alloy	64	0.51 µm	20 µin	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Gold
Mill-Max Manufacturing Corp. 817-22-020-30-001101	Surface Mount	Piston	Copper Alloy		0.51 µm	20 µin	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Gold
Mill-Max Manufacturing Corp. 817-22-006-30-001101	Surface Mount	Piston	Copper Alloy		0.51 µm	20 µin	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Gold	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Spring Piston Connector Surface Mount
