794105-1

Active

TE Connectivity AMP Connectors

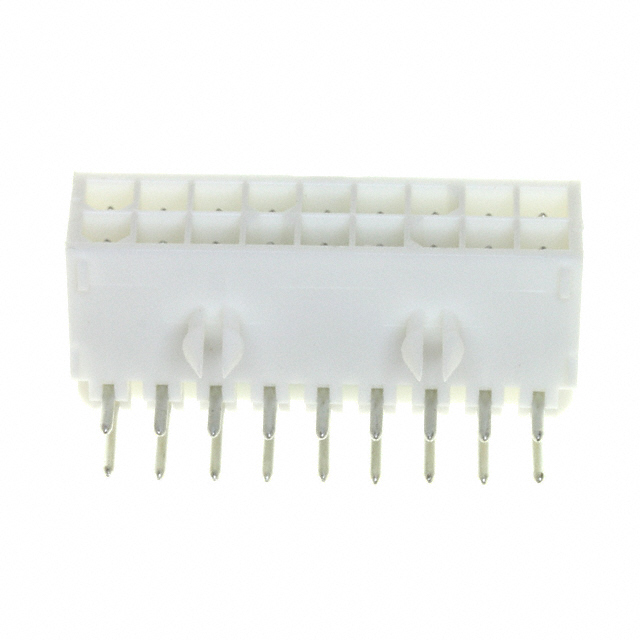

CONN HEADER R/A 18POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 18POS 4.14MM

Technical Specifications

Parameters and characteristics for this part

Specification	794105-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Post	0.145 in
Contact Length - Post	3.68 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	9.8 mm
Insulation Height	0.386 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch - Mating	4.14 mm
Pitch - Mating	0.163 in
Row Spacing - Mating	4.14 mm
Row Spacing - Mating	0.163 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

CONN HEADER R/A 18POS 4.14MM

Part	Contact Finish - Mating	Contact Material	Insulation Color	Connector Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Type	Fastening Type	Number of Rows	Contact Shape	Termination	Shrouding	Number of Positions	Style	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Current Rating (Amps)	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Voltage Rating
TE Connectivity AMP Connectors 794105-1	Tin-Lead	Brass	White	Header	4.14 mm	0.163 in	85 °C	-20 C	Nylon, Polyamide (PA)	0.145 in	3.68 mm	Male Pin	Locking Ramp	2	Circular	Solder	Shrouded - 4 Wall	18	Board to Cable/Wire	General Purpose	150 Áin	3.81 Ám	9.8 mm	0.386 in	Varies by Wire Gauge	Through Hole, Right Angle	4.14 mm	0.163 in	UL94 V-0	Tin-Lead	150 Áin	3.81 Ám	All	600 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 4.33

General part information

Connector Header Through Hole, Right Angle 18 position 0.163" (4.14mm)
