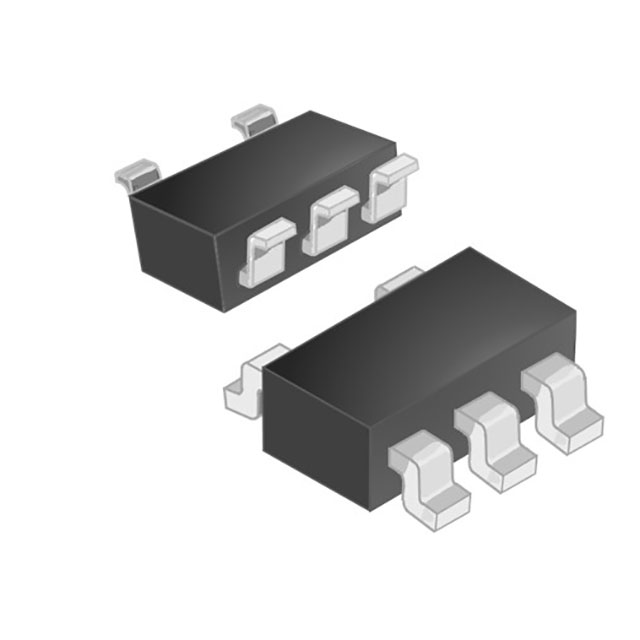

GLF1201-T1G7

Active

GLF Integrated Power

TRCB LOADSWITCH WITHOUT OUTPUT D

Search across all available documentation for this part.

Active

GLF Integrated Power

TRCB LOADSWITCH WITHOUT OUTPUT D

Technical Specifications

Parameters and characteristics for this part

Specification	GLF1201-T1G7

Current - Output (Max) [Max]	4 A
Features	Slew Rate Controlled, Load Discharge
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	SC-74A, SOT-753
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	54 mOhm
Supplier Device Package	SOT-23-5
Switch Type	General Purpose
Voltage - Load [Max]	3.6 V
Voltage - Load [Min]	0.8 V
Voltage - Supply (Vcc/Vdd)	False

TRCB LOADSWITCH WITHOUT OUTPUT D

Part	Current - Output (Max) [Max]	Features	Output Configuration	Package / Case	Ratio - Input:Output [custom]	Mounting Type	Voltage - Supply (Vcc/Vdd)	Output Type	Supplier Device Package	Input Type	Voltage - Load [Min]	Voltage - Load [Max]	Rds On (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Switch Type	Number of Outputs
GLF Integrated Power GLF1201-T1G7	4 A	Load Discharge, Slew Rate Controlled	High Side	SC-74A, SOT-753	1:1	Surface Mount		N-Channel	SOT-23-5	Non-Inverting	0.8 V	3.6 V	54 mOhm	85 °C	-40 °C	On/Off	General Purpose	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 N-Channel 4A SOT-23-5
