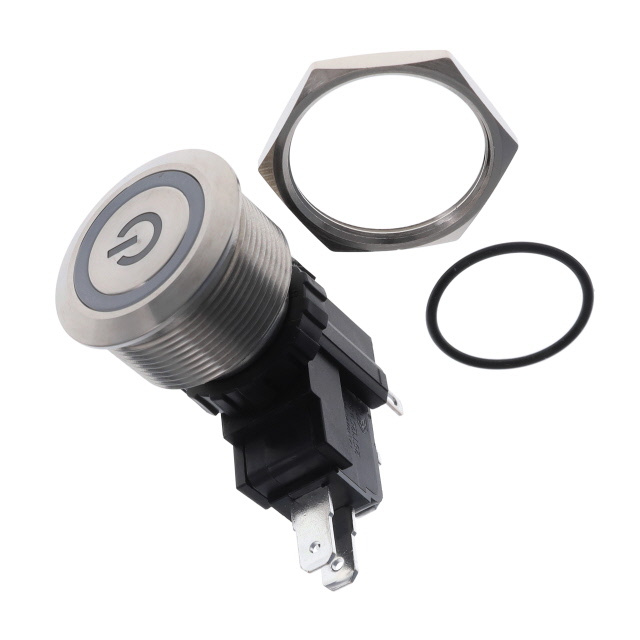

AVH25MSSFE1A241604
ActiveTE Connectivity Raychem Cable Protection
AVH25 FLT SS MT R+P R&G 24V16A
Deep-Dive with AI
Search across all available documentation for this part.
AVH25MSSFE1A241604
ActiveTE Connectivity Raychem Cable Protection
AVH25 FLT SS MT R+P R&G 24V16A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AVH25MSSFE1A241604 |
|---|---|
| Actuator Marking | Power Symbol |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 16 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | Green/Red, LED |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 25.2 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ALCOSWITCH AVH25 Series
Anti-Vandal Switch, Single Pole - Double Throw Configuration (Pole-Throw), Single Actuator, Flush Actuator, Illuminated, ALCOSWITCH AVH25
