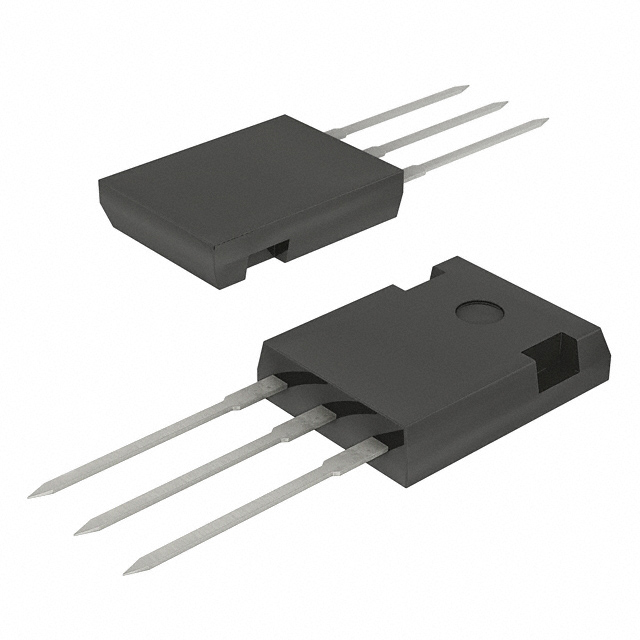

CS30-14IO1

Active

IXYS

SCR 1.4KV 49A TO247AD

Search across all available documentation for this part.

Active

IXYS

SCR 1.4KV 49A TO247AD

Technical Specifications

Parameters and characteristics for this part

Specification	CS30-14IO1

Current - Gate Trigger (Igt) (Max) [Max]	55 mA
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	400 A, 430 A
Current - Off State (Max) [Max]	50 µA
Current - On State (It (AV)) (Max) [Max]	30 A
Current - On State (It (RMS)) (Max) [Max]	49 A
Mounting Type	Through Hole
Package / Case	TO-247-3
SCR Type	Standard Recovery
Supplier Device Package	TO-247AD
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V
Voltage - Off State	1.4 kV
Voltage - On State (Vtm) (Max) [Max]	1.63 V

Part	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Off State (Max) [Max]	Package / Case	Current - On State (It (AV)) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Mounting Type	Supplier Device Package	SCR Type	Voltage - Off State	Voltage - On State (Vtm) (Max) [Max]
IXYS CS30-12IO1	55 mA	100 mA	1 V	400 A 430 A	50 µA	TO-247-3	30 A	49 A	Through Hole	TO-247AD	Standard Recovery	1.2 kV	1.63 V
IXYS CS30-14IO1	55 mA	100 mA	1 V	400 A 430 A	50 µA	TO-247-3	30 A	49 A	Through Hole	TO-247AD	Standard Recovery	1.4 kV	1.63 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 3.16

General part information

SCR 1.4 kV 49 A Standard Recovery Through Hole TO-247AD
