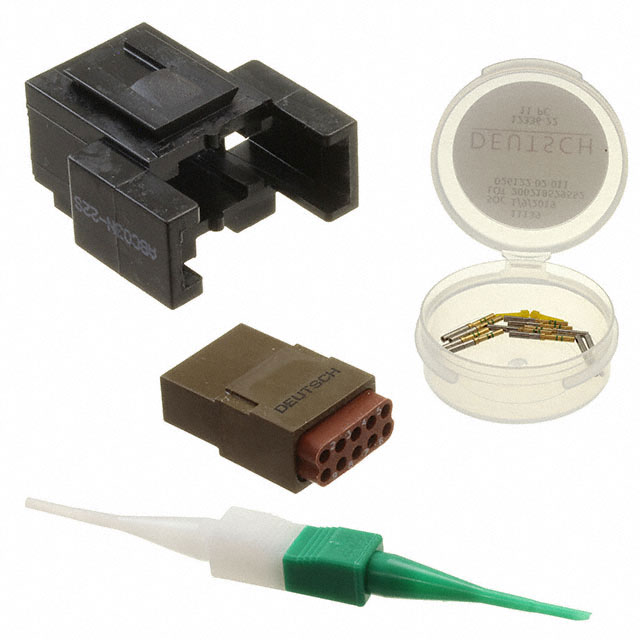

ABC03N-22S

Active

TE Connectivity Raychem Cable Protection

RECTANGULAR CONNECTOR, ABC SERIES, 10 CONTACTS, RECEPTACLE, CRIMP, 2 ROW

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

RECTANGULAR CONNECTOR, ABC SERIES, 10 CONTACTS, RECEPTACLE, CRIMP, 2 ROW

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Wire Gauge [Max]	Wire Gauge [Min]	Fastening Type	Cable Termination	Contact Type	Mounting Type	Color	Number of Rows	Connector Type
TE Connectivity Raychem Cable Protection ABC03N-22S	10	28 AWG	22 AWG	Latch Holder	Crimp	Female Socket	Free Hanging (In-Line)	Black	2	Receptacle
TE Connectivity Raychem Cable Protection ABC03N-16S-4048	4	20 AWG	16 AWG	Latch Holder	Crimp	Female Socket	Free Hanging (In-Line)	Black	2	Receptacle
TE Connectivity Raychem Cable Protection ABC03N-22P-6210 [V004]	10	28 AWG	22 AWG	Latch Holder	Crimp	Male Pin	Free Hanging (In-Line)	Black	2	Receptacle
TE Connectivity Raychem Cable Protection ABC03N-12P-4048	2	14 AWG	12 AWG	Latch Holder	Crimp	Male Pin	Free Hanging (In-Line)	Black	1	Receptacle
TE Connectivity Raychem Cable Protection ABC03N-22P-4048	10	28 AWG	22 AWG	Latch Holder	Crimp	Male Pin	Free Hanging (In-Line)	Black	2	Receptacle
TE Connectivity Raychem Cable Protection ABC03N-22P-6210	10	28 AWG	22 AWG	Latch Holder	Crimp	Male Pin	Free Hanging (In-Line)	Black	2	Receptacle
TE Connectivity Raychem Cable Protection ABC03N-16P	4	20 AWG	16 AWG	Latch Holder	Crimp	Male Pin	Free Hanging (In-Line)	Black	2	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Rectangular Receptacle Connector Crimp 22-28 AWG
