Specification	3003W3SXX69E40X

Color	Green
Connector Layout	A, DA
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating	20 A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Board Lock
Finish	Tin Plated
Material Flammability Rating	UL94 V-0
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	3W3
Position Types	Power
Shell Material	Steel
Shell Size	2

3003W3S Series

Part	Dielectric Material	Color	Mating Cycles	Ingress Protection	Contact Type	Finish	Shell Material	Flange Feature	Number of Rows	Shell Finish Thickness	Mounting Type	Shell Size	Connector Layout	Part Code	Connector Style	Connector Type	Number of Positions	Position Types	Note	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Current Rating	Features	Material Flammability Rating	Contact Finish Thickness	Contact Finish	Backset Spacing	Termination
McGill Microwave Systems 3003W3SXX99A50X	Glass Filled Polybutylene Terephthalate (PBT)	Green	500 cycles	IP20	Power	Tin Plated	Steel	Housing Shell (4-40)	1	315 µin	Through Hole	2	A DA	3W3	Combo D-Sub	Receptacle for Female Contacts	3	Power
McGill Microwave Systems 3003W3SXX59N40X																Female Sockets Receptacle
McGill Microwave Systems 3003W3SXX71AA0X																Female Sockets Receptacle
McGill Microwave Systems 3003W3SXX73N40X																Female Sockets Receptacle

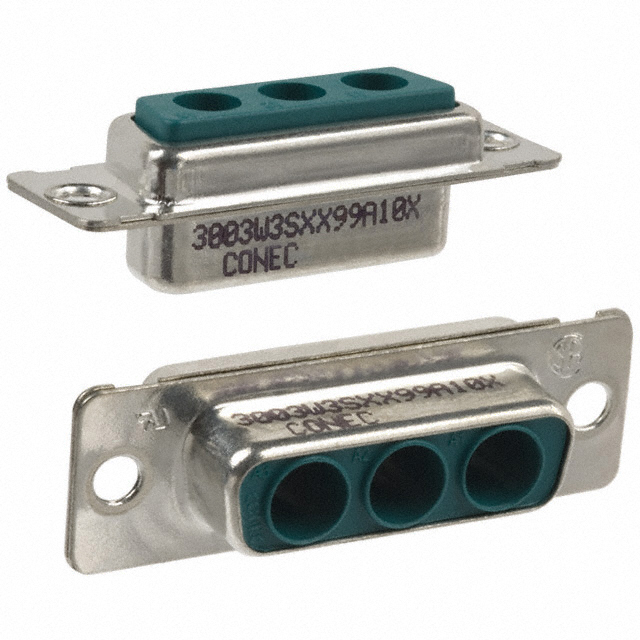

McGill Microwave Systems 3003W3SXX99A10X	Glass Filled Polybutylene Terephthalate (PBT)	Green		IP20	Coax Coax or Power Power	Tin Plated	Steel	Housing Shell (Unthreaded)	1		Free Hanging (In-Line)	2	A DA	3W3	Combo D-Sub	Receptacle for Female Contacts	3	Coax Power	Contacts Not Included	125 °C	-55 °C
McGill Microwave Systems 3003W3SXX69E40X	Glass Filled Polybutylene Terephthalate (PBT)	Green			Power	Tin Plated	Steel		1			2	A DA	3W3	Combo D-Sub	Female Sockets Receptacle	3	Power		125 °C	-55 °C	Copper Alloy	20 A	Board Lock	UL94 V-0	30 µin	Gold
McGill Microwave Systems 3003W3SXX56N40X	Glass Filled Polybutylene Terephthalate (PBT)	Green			Power	Tin Plated	Steel	Housing Shell (4-40)	1		Board Edge Right Angle Through Hole	2	A DA	3W3	Combo D-Sub	Female Sockets Receptacle	3	Power		125 °C	-55 °C	Copper Alloy	20 A	Board Lock	UL94 V-0	30 µin	Gold	0.459 in	Solder
McGill Microwave Systems 3003W3SXX71E20X																Female Sockets Receptacle
McGill Microwave Systems 3003W3SXX69F40X																Female Sockets Receptacle
