7989P 0131000

Active

Belden Inc.

4 PR #23 FEP FLRST

Search across all available documentation for this part.

Active

Belden Inc.

4 PR #23 FEP FLRST

Technical Specifications

Parameters and characteristics for this part

Specification	7989P 0131000

Cable Type	Multi-Pair, Cat6
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	9.32 mm
Jacket (Insulation) Diameter [diameter]	0.367 "
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket Color	Blue
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Ratings	UL Style CMP
Usage	Video
Voltage	300 V
Wire Gauge	23 AWG

Part	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Ratings	Jacket Color	Number of Conductors	Conductor Strand	Cable Type	Conductor Material	Length	Length	Voltage	Wire Gauge	Usage	Features
Belden Inc. 7989P 0131000	Fluorinated Ethylene-Propylene (FEP)	9.32 mm	0.367 "	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	UL Style CMP	Blue	8	Solid	Multi-Pair Cat6	Copper Bare	1000 ft	304.8 m	300 V	23 AWG	Video	Rip Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

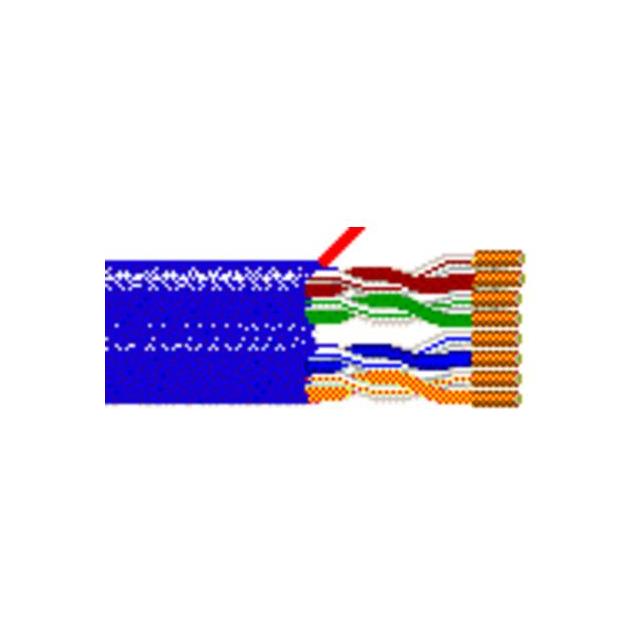

8 (4 Pair) Conductor Multi-Pair, Cat6 Cable Blue 23 AWG 1000.0' (304.8m)

Technical documentation and resources

No documents available
