TE Connectivity AMP Connectors

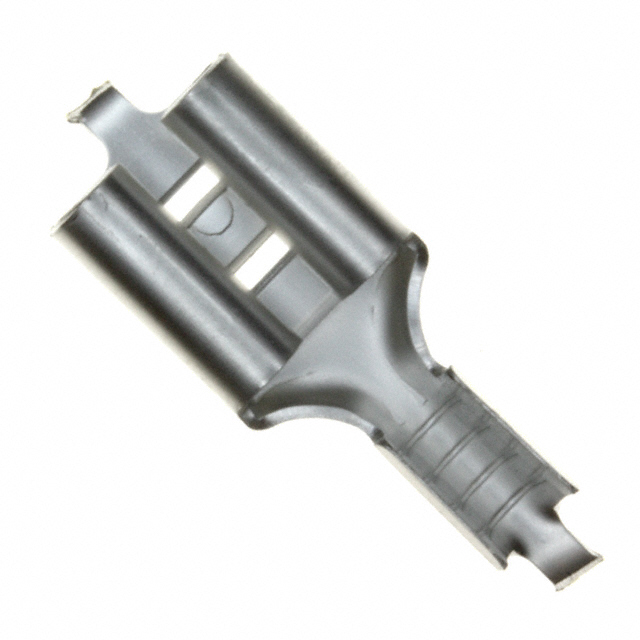

QUICK DISCONNECT TERMINAL 14-18AWG BRASS F 16.63MM TIN T/R

Find alt
41194

41194

Obsolete
TE Connectivity AMP Connectors

QUICK DISCONNECT TERMINAL 14-18AWG BRASS F 16.63MM TIN T/R

Find alt

Description

General part information

4119 Series

0.250" (6.35mm) Quick Connect Female 14-18 AWG Crimp Connector Non-Insulated

Technical Specifications

Parameters and characteristics for this part

Specification41194
Contact FinishTin
Contact MaterialBrass
GenderFemale
InsulationNon-Insulated
Length - Overall0.655 in
Mounting TypeFree Hanging (In-Line)
Tab Length0.305 in
Tab Thickness0.032 in
Tab Width0.25 in
Terminal TypeStandard
TerminationCrimp
Wire Gauge (AWG) (Max)18 AWG
Wire Gauge (AWG) (Min)14 AWG
