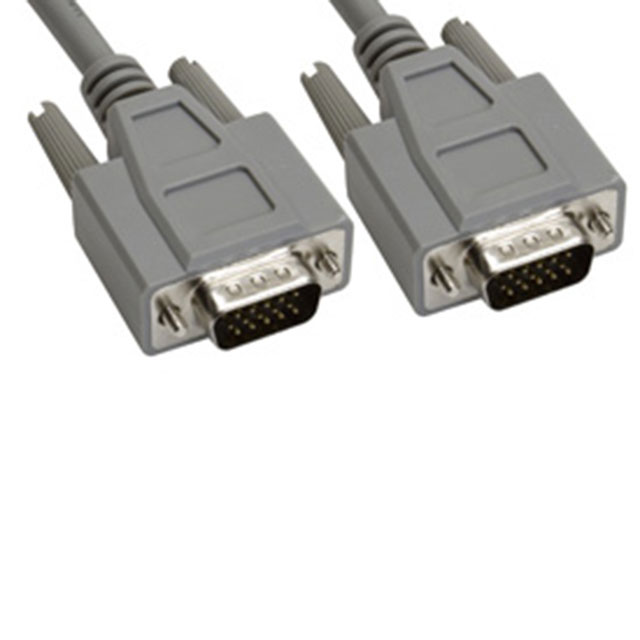

CS-DSDHD15MM0-007.5
ActiveCOMPUTER CABLE, HD-15 PLUG, HD-15 PLUG, 7.5 FT, 2.29 M, GRAY

CS-DSDHD15MM0-007.5
ActiveCOMPUTER CABLE, HD-15 PLUG, HD-15 PLUG, 7.5 FT, 2.29 M, GRAY
Description
General part information
CS-DSDHD15 Series
The CS-DSDHD15MM0-007.5 from Amphenol is a grey colour copper shielded male/male 15 pin (HD15) deluxe HD D-sub cable assembly. This high density male/male D-sub cable provides exceptional performance in applications where longevity and repeated disconnects is of major concern. It integrates copper tape and aluminium mylar shielded 26AWG data grade wire with pre-terminated HD15 (aka DB15HD) male and female D-sub connectors. This cable assembly is perfect for RS232 serial data, prototype, control and low voltage applications using 15 pin HD15 interface.
Technical Specifications
Parameters and characteristics for this part
| Specification | CS-DSDHD15MM0-007.5 |
|---|---|
| 1st Connector | Male Pins, Plug |
| 2nd Connector | Male Pins, Plug |
| Color | Gray, Individual (Round) |
| Length | 7.5 ft |
| Number of Positions | 15 |
| Shielding | Shielded |
| Type | HD15 |
