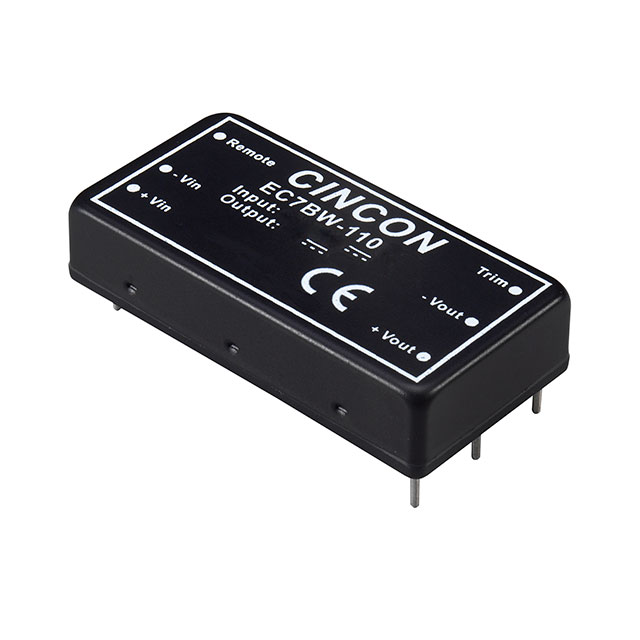

EC7B-24S15S

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 15V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC7B-24S15S

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 15V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC7B-24S15S

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Control Features	Active High, Enable
Current - Output (Max) [Max]	1.33 A
Efficiency	90 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

EC7B-24 Series

Part	Efficiency	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current - Output (Max) [Max]	Package / Case	Features	Applications	Voltage - Input (Max) [Max]	Standard Number	Power (Watts)	Control Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Voltage - Output 1	Mounting Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Cincon Electronics Co. LTD EC7B-24S05	90 %	1	85 °C	-40 °C	CE cURus	4 A	6-DIP Module	OCP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	60950-1	20 W	Active High Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	1.5 kV	Isolated Module	5 V	Through Hole
Cincon Electronics Co. LTD EC7B-24S05NS	90 %	1	85 °C	-40 °C	CE cURus	4 A	6-DIP Module	OCP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	60950-1	20 W	Active Low Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	1.5 kV	Isolated Module	5 V	Through Hole
Cincon Electronics Co. LTD EC7B-24D15N	90 %	2	85 °C	-40 °C	CE cURus		6-DIP Module	OCP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	60950-1	20 W	Active Low Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	1.5 kV	Isolated Module	15 V	Through Hole	670 mA	670 mA	-15 V
Cincon Electronics Co. LTD EC7B-24S25N	88 %	1	85 °C	-40 °C	CE cURus	6 A	6-DIP Module	OCP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	60950-1	15 W	Active Low Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	1.5 kV	Isolated Module	2.5 V	Through Hole
Cincon Electronics Co. LTD EC7B-24S15S	90 %	1	85 °C	-40 °C	CE cURus	1.33 A	6-DIP Module	OCP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	60950-1	20 W	Active High Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	1.5 kV	Isolated Module	15 V	Through Hole
Cincon Electronics Co. LTD EC7B-24S33N	90 %	1	85 °C	-40 °C	CE cURus	5 A	6-DIP Module	OCP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	60950-1	17 W	Active Low Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	1.5 kV	Isolated Module	3.3 V	Through Hole
Cincon Electronics Co. LTD EC7B-24S33	90 %	1	85 °C	-40 °C	CE cURus	5 A	6-DIP Module	OCP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	60950-1	17 W	Active High Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	1.5 kV	Isolated Module	3.3 V	Through Hole
Cincon Electronics Co. LTD EC7B-24D12N	90 %	2	85 °C	-40 °C	CE cURus		6-DIP Module	OCP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	60950-1	20 W	Active Low Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	1.5 kV	Isolated Module	12 V	Through Hole	835 mA	835 mA	-12 V
Cincon Electronics Co. LTD EC7B-24S18NS	86 %	1	85 °C	-40 °C	CE cURus	6 A	6-DIP Module	OCP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	60950-1	11 W	Active Low Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	1.5 kV	Isolated Module	1.8 V	Through Hole
Cincon Electronics Co. LTD EC7B-24D15NS	90 %	2	85 °C	-40 °C	CE cURus		6-DIP Module	OCP OVP Remote On/Off SCP UVLO	ITE (Commercial)	36 V	60950-1	20 W	Active Low Enable	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	1.5 kV	Isolated Module	15 V	Through Hole	670 mA	670 mA	-15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 47.32
		5	$ 39.60
		10	$ 39.20

Description

General part information

EC7B-24 Series

Isolated Module DC DC Converter 1 Output 15V 1.33A 18V - 36V Input
