PF2403/4 NA005

Active

ALPHA WIRE

SLEEVING 0.75" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.75" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics for this part

Specification	PF2403/4 NA005

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside [diameter]	19.05 mm
Diameter - Inside [diameter]	0.75 in
Diameter - Outside [diameter]	0.819 in
Diameter - Outside [diameter]	20.8 mm
Environment Protection	Corrosion Resistant
Length	100 ft
Length	30.48 m
Material	Fiberglass
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	648 °C
Operating Temperature [Min]	-60 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness	0.018 in
Wall Thickness	0.46 mm

SLEEVING 0.75" ID FBRGLASS 100'

Part	Type Attributes	Wall Thickness	Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length	Length	Abrasion Protection	Material	Color	Environment Protection	Material Flammability Rating	Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]
ALPHA WIRE PF2403/4 NA005	Braided	0.018 in	0.46 mm	-60 °C	648 °C	0.819 in	20.8 mm	100 ft	30.48 m	Abrasion Resistant	Fiberglass	Natural	Corrosion Resistant	UL VW-1	Sleeving	19.05 mm	0.75 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

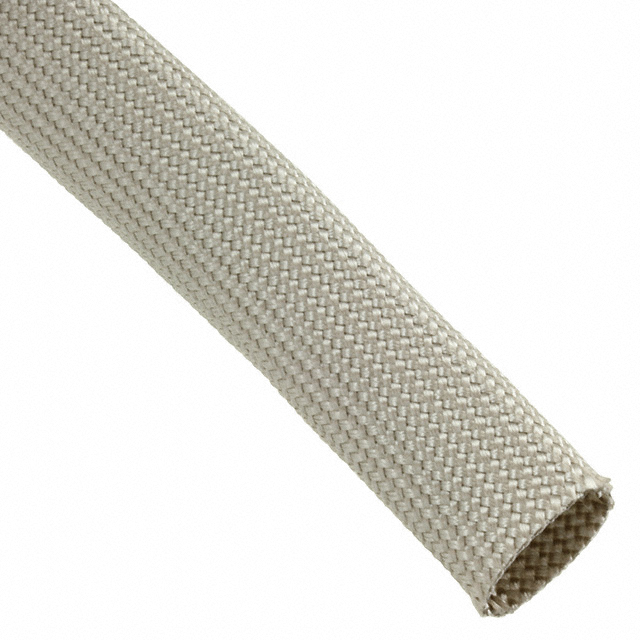

Natural Fiberglass Braided Sleeving 0.750" (19.05mm) 100' (30.48m)
