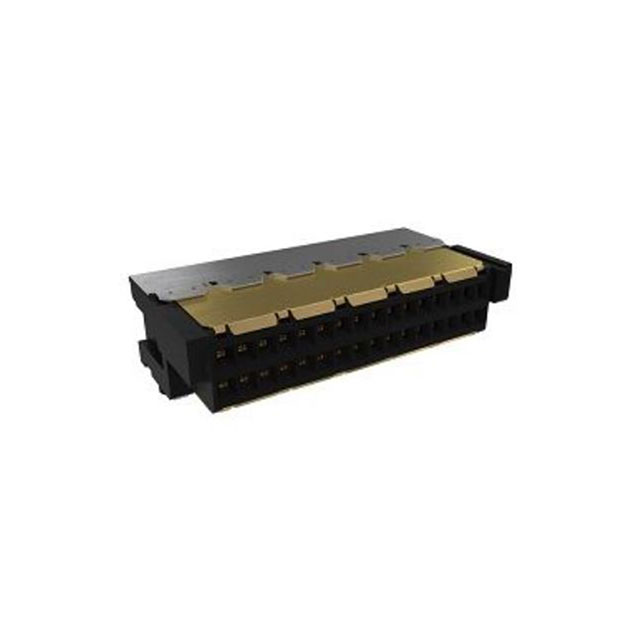

10150095-3200RLF - 10150095-3200RLF

10150095-3200RLF

Active
Amphenol ICC (FCI)

CONN MICROSPEED 1.00MM BOARD-

Deep-Dive with AI

Search across all available documentation for this part.

Documentsminitek microspeed 1 00mm btb productpresentation Other Related Document10150096-3200RLF+1
10150095-3200RLF - 10150095-3200RLF

10150095-3200RLF

Active
Amphenol ICC (FCI)

CONN MICROSPEED 1.00MM BOARD-

Deep-Dive with AI

Documentsminitek microspeed 1 00mm btb productpresentation Other Related Document10150096-3200RLF+1

Technical Specifications

Parameters and characteristics for this part

Specification10150095-3200RLF
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating3.94 µin
Contact Finish Thickness - Mating0.1 µm
Contact Finish Thickness - Post2 çm
Contact Finish Thickness - Post78.7 çin
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeFemale Socket
Current Rating (Amps)1 A
Fastening TypePush-Pull
FeaturesSolder Retention, Board Guide
Insulation ColorBlack
Insulation Height0.207 in
Insulation Height5.25 mm
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount, Right Angle
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.039 in
Pitch - Mating1 mm
Row Spacing - Mating [x]1.5 mm
Row Spacing - Mating [x]0.059 in
TerminationSolder
Voltage Rating100 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 6.17
10$ 4.46
25$ 4.19
50$ 4.08
100$ 3.98
250$ 3.72
Digi-Reel® 1$ 6.17
10$ 4.46
25$ 4.19
50$ 4.08
100$ 3.98
250$ 3.72
Tape & Reel (TR) 500$ 3.25

Description

General part information

10150095 Series

32 Position Receptacle Connector 0.039" (1.00mm) Surface Mount, Right Angle Gold
