Z8S18020FSG

Obsolete

Zilog

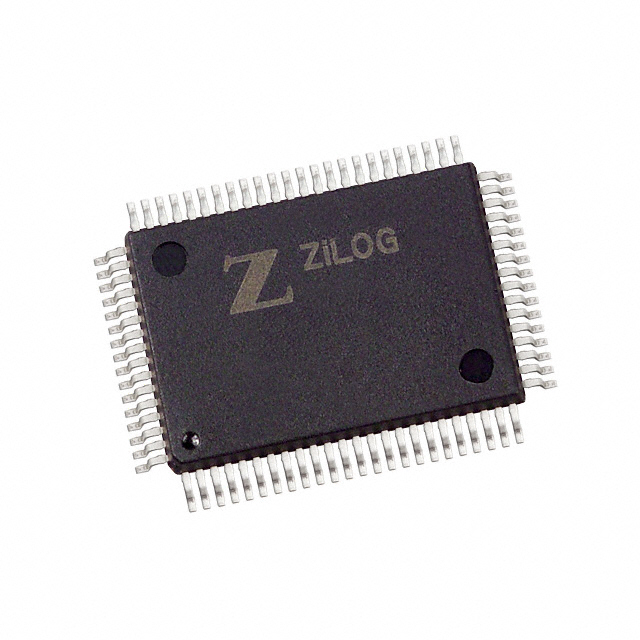

IC MPU Z180 20MHZ 80QFP

Search across all available documentation for this part.

Obsolete

Zilog

IC MPU Z180 20MHZ 80QFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	726	$ 10.00

General part information

Z8S180 Microprocessor IC Z180 1 Core, 8-Bit 20MHz 80-QFP

Technical documentation and resources

Specification	Z8S18020FSG	Z8S18020 Series

Core Processor	Z8S180	Z8S180
Graphics Acceleration	False	False
Mounting Type	Surface Mount	Surface Mount
Number of Cores/Bus Width [custom]	8 Bit	8 Bit
Number of Cores/Bus Width [custom]	1 Core	1 Core
Operating Temperature [Max]	70 °C	70 - 100 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	80-BQFP	80-BQFP, 68-LCC (J-Lead)
RAM Controllers	DRAM	DRAM
Speed	20 MHz	20 MHz
Supplier Device Package	80-QFP	80-QFP, 68-PLCC
Voltage - I/O	5 V	5 V

Part	RAM Controllers	Mounting Type	Core Processor	Speed	Voltage - I/O	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]	Supplier Device Package
Zilog Z8S18020FSG	DRAM	Surface Mount	Z8S180	20 MHz	5 V	70 °C	0 °C	80-BQFP	8 Bit	1 Core	80-QFP
Zilog Z8S18020VSG	DRAM	Surface Mount	Z8S180	20 MHz	5 V	70 °C	0 °C	68-LCC (J-Lead)	8 Bit	1 Core	68-PLCC
Zilog Z8S18020VEG	DRAM	Surface Mount	Z8S180	20 MHz	5 V	100 °C	-40 °C	68-LCC (J-Lead)	8 Bit	1 Core	68-PLCC
Zilog Z8S18020FEG1960	DRAM	Surface Mount	Z8S180	20 MHz	5 V	100 °C	-40 °C	80-BQFP	8 Bit	1 Core	80-QFP
Zilog Z8S18020FEG	DRAM	Surface Mount	Z8S180	20 MHz	5 V	100 °C	-40 °C	80-BQFP	8 Bit	1 Core	80-QFP
