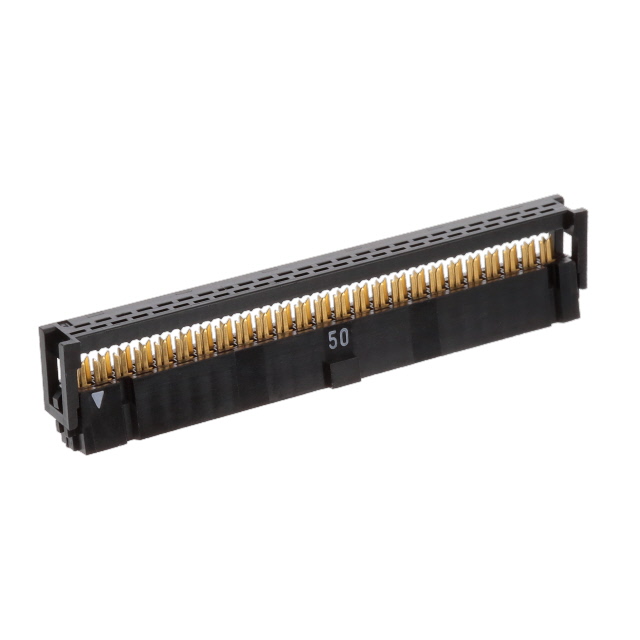

PS-50SM-D4P1-1C
ActiveJAE Electronics
BOARD CONNECTOR, 50 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, IDC TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PS-50SM-D4P1-1C
ActiveJAE Electronics
BOARD CONNECTOR, 50 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, IDC TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PS-50SM-D4P1-1C |
|---|---|
| Cable Termination | IDC |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Gauge | 28 AWG |
| Wire Type | Discrete or Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 70 | $ 6.93 | |
Description
General part information
PS-50SM Series
50 Position Rectangular Receptacle Connector IDC Gold 28 AWG
