0854-0-15-20-82-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED IN-LINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

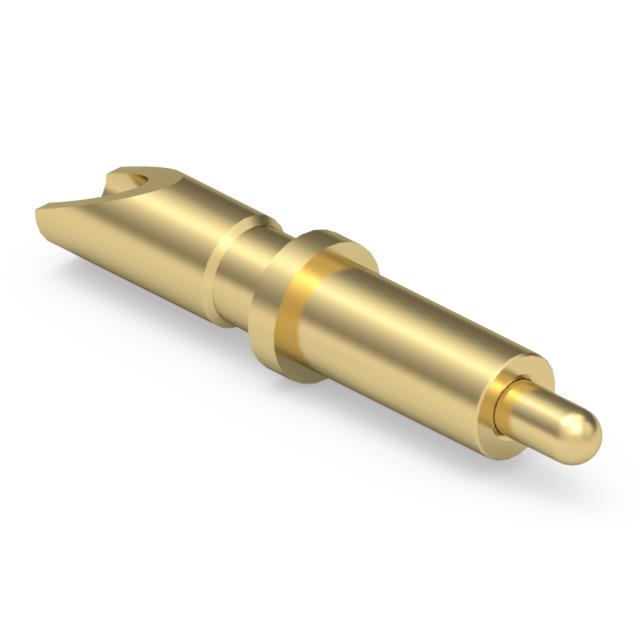

0854-0-15-20-82-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED IN-LINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0854-0-15-20-82-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 9.6 A |
| Features | 16 AWG |
| Mating Cycles | 1000000 |
| Minimum Working Height [Min] | 6.32 mm |
| Minimum Working Height [Min] | 0.249 in |
| Mounting Type | Solder Cup, Through Hole |
| Operating Force - Initial | 25 gf |
| Operating Force - Mid Compression | 120 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension | 3.18 mm |
| Pad Layout Dimension | 0.125 in |
| Plunger Size [diameter] | 1.27 mm |
| Plunger Size [diameter] | 0.05 in |
| Recommended Working Height [z] | 7.47 mm |
| Recommended Working Height [z] | 0.294 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.60 | |
| 10 | $ 1.22 | |||
| 25 | $ 1.10 | |||
| 50 | $ 1.01 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.67 | |||
Description
General part information
0854-0 Series
Contact Spring Through Hole, Solder Cup
Documents
Technical documentation and resources
