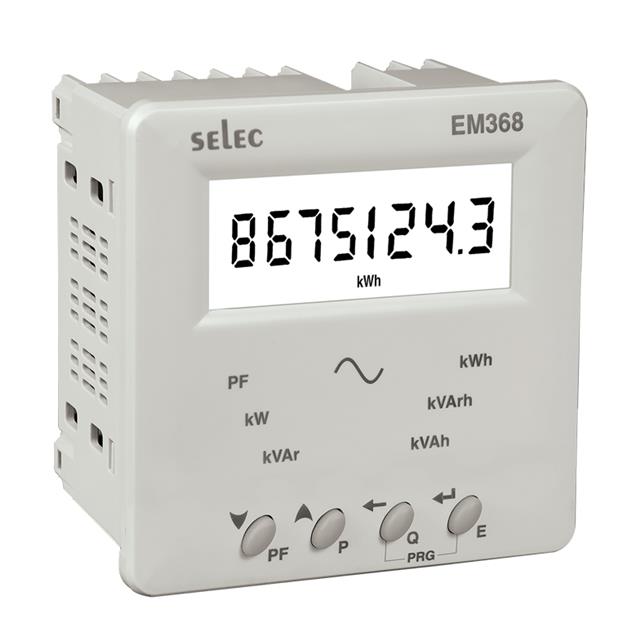

EM368-C-CU-ROHS

Active

Selec Controls USA Inc.

KWH METER WITH LCD DISPLAY RS485

Search across all available documentation for this part.

Active

Selec Controls USA Inc.

KWH METER WITH LCD DISPLAY RS485

Technical Specifications

Parameters and characteristics for this part

Specification	EM368-C-CU-ROHS

Display Characters - Height [z]	9.14 mm
Display Characters - Height [z]	0.36 in
Display Type	LCD - Black Characters, Backlight
Ingress Protection	IP51 - Dust Protected
Measuring Type	Current (3-Phase), Wattage, Voltage
Number of Characters Per Row	8
Panel Cutout Dimensions [x]	91.5 mm
Panel Cutout Dimensions [y]	91.5 mm
Termination Style	Screw Terminal
Type	Energy Monitor
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

KWH METER WITH LCD DISPLAY RS485

Part	Type	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Type	Ingress Protection	Number of Characters Per Row	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Termination Style
Selec Controls USA Inc. EM368-C-CU-ROHS	Energy Monitor	9.14 mm	0.36 in	Current (3-Phase), Voltage, Wattage	IP51 - Dust Protected	8	91.5 mm	91.5 mm	100 VAC	240 VAC	LCD - Black Characters, Backlight	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 64.41

General part information

Energy Monitor LCD - Black Characters, Backlight Display Panel Mount

Technical documentation and resources

No documents available
