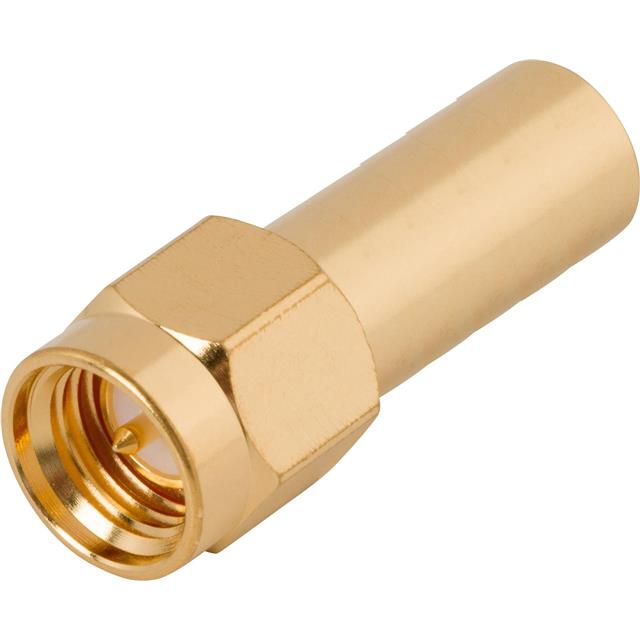

Specification	2903-6001

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	179B, 316, RG-174
Cable Group Current Rating	187 A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	12.4 GHz
Housing Color	Gold
Impedance	50 Ohm
Includes	Connector, Heat Shrink
Includes Total Count	2 pcs
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

2903-60 Series

Part	Mating Cycles	Dielectric Material	Includes	Includes Total Count	Body Finish	Center Contact Plating	Body Material	Number of Ports	Connector Style	Frequency - Max	Impedance	Connector Type	Cable Group	Cable Group Current Rating	Shield Termination	Fastening Type	Center Contact Material	Mounting Type	Housing Color	Contact Termination
McGill Microwave Systems 2903-6001	500 cycles	Polytetrafluoroethylene (PTFE)	Connector Heat Shrink	2 pcs	Gold	Gold	Stainless Steel	1	SMA	12.4 GHz	50 Ohm	Male Pin Plug	179B 316 RG-174	187 A	Crimp	Threaded	Brass	Free Hanging (In-Line)	Gold	Crimp
