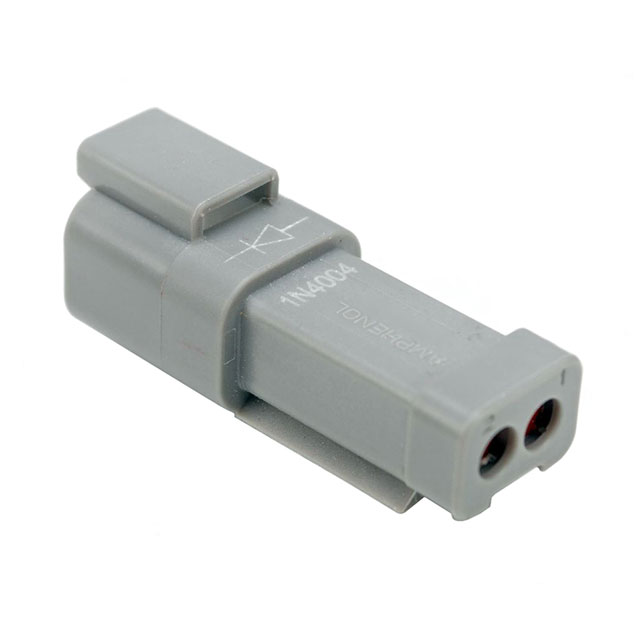

Specification	AT04-2P-D1N4GRY

Cable Termination	Crimp
Color	Gray
Connector Type	Receptacle
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Diode
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Wire Gauge (AWG) (Max)	20.5 AWG
Wire Gauge (AWG) (Min)	14 AWG
Wire Type	Discrete

AT04-2P Series

Part	Note	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Material	Number of Rows	Number of Positions	Contact Termination	Features	Mounting Type	Fastening Type	Connector Type	Color	Contact Type	Accessory Type	For Use With/Related Products	Contact Shape	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Current Rating	Style	Termination	Contact Material	Shrouding	Ingress Protection	Insulation Height	Applications	Cable Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Wire Type
McGill Microwave Systems AT04-2P-MM03	Contacts Not Included	125 °C	-55 °C	Thermoplastic	1	2
McGill Microwave Systems AT04-2P-PM14	Contacts Not Included	125 °C	-55 °C	Thermoplastic	1	2	Crimp	Cap (Cover) Mounting Flange Sealed	Panel Mount	Latch Holder	Receptacle	Black	Male Pin
McGill Microwave Systems AT04-2P-RT06						2		IP67						Terminator	AT Series™
McGill Microwave Systems AT04-2P-BM03		125 °C	-55 °C	Thermoplastic	1	2		Board Lock	Through Hole	Latch Holder	Receptacle		Male Pin			Circular	Black	All	Nickel	13 A	Board Cable/Wire	Solder	Copper Alloy	Shrouded - 4 Wall	IP67	0.835 in	Automotive General Purpose Industrial
McGill Microwave Systems AT04-2P-BLU	Contacts Not Included	125 °C	-55 °C	Thermoplastic	1	2	Crimp		Free Hanging (In-Line)	Latch Holder	Receptacle	Blue	Male Pin
McGill Microwave Systems AT04-2P-L012	Contacts Not Included	125 °C	-55 °C	Thermoplastic	1	2	Crimp	Mounting Flange Sealed	Panel Mount	Latch Holder	Receptacle	Gray	Male Pin
McGill Microwave Systems AT04-2P-SR01BLU	Contacts Not Included	125 °C	-55 °C	Thermoplastic	1	2	Crimp	Cap (Cover) IP68 IP69K Sealed Strain Relief	Free Hanging (In-Line)	Latch Holder	Receptacle	Blue	Male Pin
McGill Microwave Systems AT04-2P-SR01BLK	Contacts Not Included	125 °C	-55 °C	Thermoplastic	1	2	Crimp	Strain Relief	Free Hanging (In-Line)	Latch Holder	Receptacle	Black	Male Pin
McGill Microwave Systems AT04-2P-D1N4GRY					1	2		Diode	Free Hanging (In-Line)	Latch Holder	Receptacle	Gray	Male Pin															Crimp	14 AWG	20.5 AWG	Discrete
McGill Microwave Systems AT04-2P	Contacts Not Included	125 °C	-55 °C	Thermoplastic	1	2	Crimp		Free Hanging (In-Line)	Latch Holder	Receptacle	Gray	Male Pin
