Part	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Type	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Contact Shape	Fastening Type	Includes Total Count	Includes	Insert Material	Contact Size	Connector Type	Mounting Type	Note	Mounting Feature	Contact Type	Orientation	Shell Material	Shell Size (MIL)	Housing Color	Shell Finish	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Qualification	Color	Grade	Applications	Contact Material	Termination	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating	Primary Material	Shell Size - Insert Length	Shell Size - Insert Width	Number of Positions (Total)	Position Types	Number of Positions (Special)	Number of Positions (Standard)	Ingress Protection	Material Flammability Rating	Voltage Rating	Features
Amphenol Aerospace Operations D38999/24ZE35AN
Amphenol Aerospace Operations D38999/24ZE26AN	Unshielded	200 °C	-65 °C	For Male Pins	17	26	Circular	Threaded	3 pcs	Connector Nut O-Ring	Thermoplastic	20	Receptacle Housing	Panel Mount	Contacts Not Included	Bulkhead Front Side Nut	Crimp	N (Normal)	Aluminum	E	Black	Zinc Nickel	Dust Tight Waterproof	IP67	26

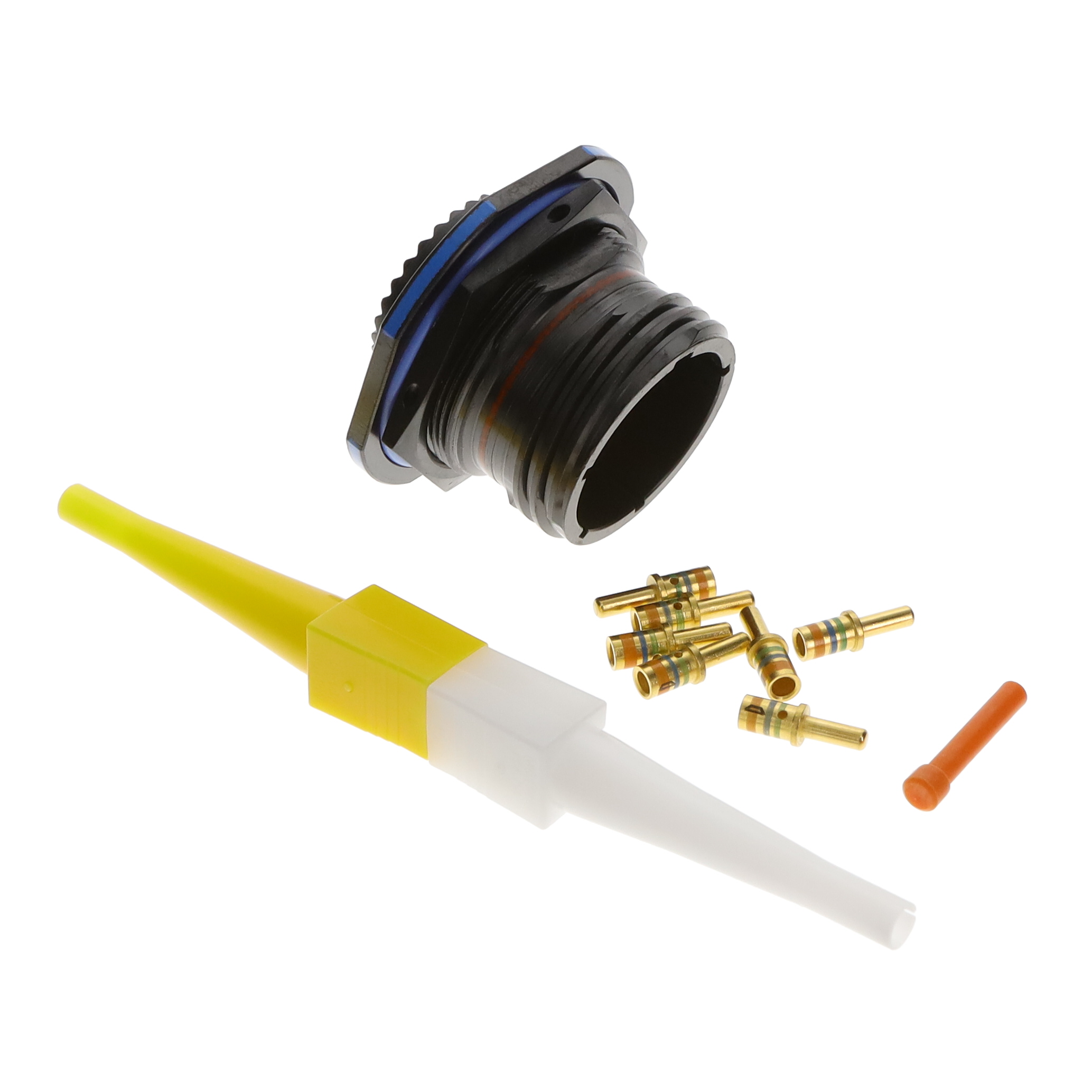

Amphenol Aerospace Operations D38999/24ZE6PN	Shielded	175 °C	-65 °C					Threaded			Thermoplastic		Male Pins Receptacle	Panel Mount		Bulkhead Front Side Nut		N (Normal)	Aluminum	E		Black Zinc Nickel	Dust Tight Waterproof	IP67	6	MIL-DTL-38999 Series III	Black	Military	Aerospace Aviation Marine Military	Copper Alloy	Crimp	50 µin	Gold	23 A	Metal	17 mm	6 mm
Amphenol Aerospace Operations D38999/24ZE26BN	Unshielded	200 °C	-65 °C	For Female Sockets	17	26	Circular	Threaded	3 pcs	Connector Nut O-Ring	Thermoplastic	20	Receptacle Housing	Panel Mount	Contacts Not Included	Bulkhead Front Side Nut	Crimp	N (Normal)	Aluminum	E	Black	Zinc Nickel	Dust Tight Waterproof	IP67	26
Amphenol Aerospace Operations D38999/24ZE26AN
Amphenol Aerospace Operations D38999/24ZE6AB	Unshielded	200 °C	-65 °C	For Male Pins			Circular	Threaded	3 pcs	Connector Nut O-Ring	Thermoplastic	12	Receptacle Housing	Panel Mount	Contacts Not Included	Bulkhead Front Side Nut	Crimp	B	Aluminum	E	Black	Zinc Nickel	Dust Tight Waterproof	IP67	6											17 mm	6 mm
Amphenol Aerospace Operations D38999/24ZE35PN	Shielded	200 °C	-65 °C		17	35		Threaded			Thermoplastic		Male Pins Receptacle	Panel Mount		Bulkhead Front Side Nut		N (Normal)	Aluminum	E		Black Zinc Nickel	Dust Tight Waterproof	IP67	55	MIL-DTL-38999 Series III	Black	Military	Aviation Marine Military	Copper Alloy	Crimp	50 µin	Gold	5 A	Metal
Amphenol Aerospace Operations D38999/24ZE2SD	Unshielded	175 °C	-65 °C					Threaded					Female Sockets Receptacle	Panel Mount		Bulkhead Front Side Nut		D	Aluminum	E		Black Zinc Nickel				MIL-DTL-38999 Series III	Black	Military	Aviation Marine Military	Copper Alloy	Crimp	50 µin	Gold		Metal	17 mm	2 mm	39	Twinax	1	38	Environment Resistant

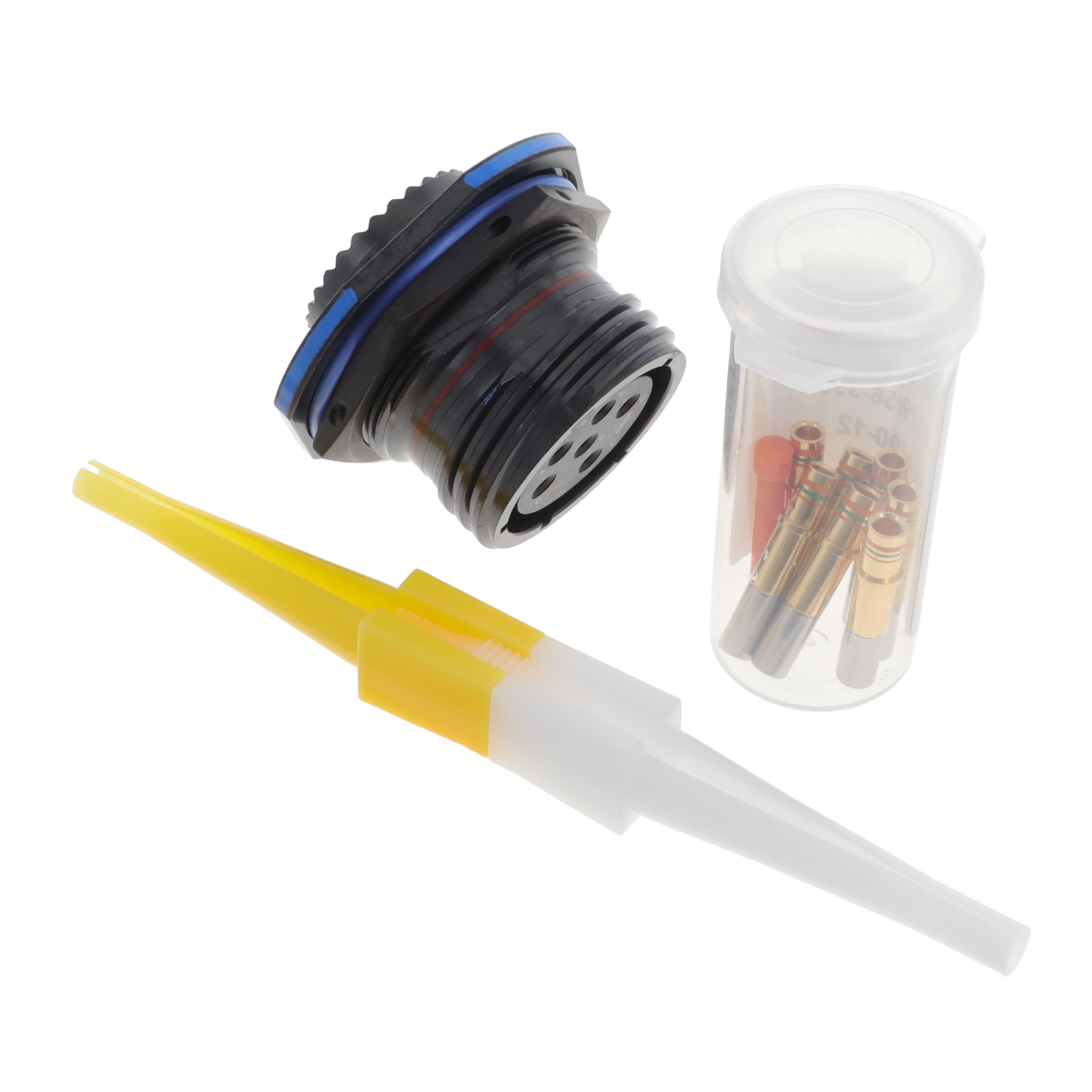

Amphenol Aerospace Operations D38999/24ZE6SN	Shielded	175 °C	-65 °C					Threaded			Thermoplastic		Female Sockets Receptacle	Panel Mount		Bulkhead Front Side Nut		N (Normal)	Aluminum	E		Black Zinc Nickel	Dust Tight Waterproof	IP67	6	MIL-DTL-38999 Series I	Black	Military	Aerospace Aviation Military	Copper Alloy	Crimp	50 µin	Gold	23 A	Metal	17 mm	6 mm						UL94 V-0	500 V	Self Locking
Amphenol Aerospace Operations D38999/24ZE6AN	Unshielded	200 °C	-65 °C	For Male Pins			Circular	Threaded	3 pcs	Connector Nut O-Ring	Thermoplastic	12	Receptacle Housing	Panel Mount	Contacts Not Included	Bulkhead Front Side Nut	Crimp	N (Normal)	Aluminum	E	Black	Zinc Nickel	Dust Tight Waterproof	IP67	6											17 mm	6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

D38999/24ZE26AN | Datasheet
