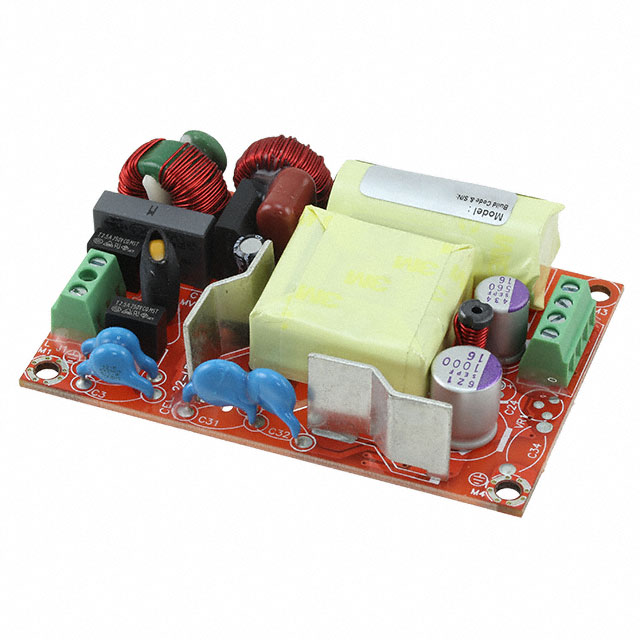

ABC41-1T15L

Active

Bel Power Solutions

AC/DC CONVERTER 15V 40W

Deep-Dive with AI

Search across all available documentation for this part.

ABC41-1T15L

Active

Bel Power Solutions

AC/DC CONVERTER 15V 40W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABC41-1T15L	ABC41 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cUL, NEMKO, UL, CE	cUL, NEMKO, UL, CE
Current - Output (Max)	-	1.33 - 5 A
Current - Output 1	2.67 A	1.33 - 830 mA
Efficiency	85 %	85 %
Features	Universal Input	Universal Input
Line Regulation	-	0.5 %
Load Regulation	-	1 %
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Through Hole, Chassis Mount
Number of Outputs	1	1
Package / Case	-	4-DIP Module
Power (Watts)	40 W	40 W
Size / Dimension [x]	76.2 mm	76.2 mm
Size / Dimension [x]	3 "	3 "
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [y]	2 in	2 in
Size / Dimension [z]	24.7 mm	24.7 mm
Size / Dimension [z]	0.97 in	0.97 in
Type	Open Frame	Open Frame
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	15 V	5 - 48 V
Weight	-	100.24 g
Weight	-	0.221 lb

ABC41 Series

AC/DC CONVERTER 12V 40W

Part	Efficiency	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Power (Watts)	Weight	Weight	Applications	Features	Package / Case	Line Regulation	Current - Output (Max) [Max]	Mounting Type	Load Regulation	Type	Voltage - Output 1	Voltage - Isolation	Current - Output 1
Bel Power Solutions ABC41-1012P	85 %	CE, cUL, NEMKO, UL	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	1	40 W	100.24 g	0.221 lb	ITE (Commercial)	Universal Input	4-DIP Module	0.5 %	3.33 A	Through Hole	1 %	Open Frame	12 V
Bel Power Solutions ABC41-1T48L	85 %	CE, cUL, NEMKO, UL	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	1	40 W			ITE (Commercial)	Universal Input				Chassis Mount		Open Frame	48 V	4000 V	830 mA
Bel Power Solutions ABC41-1T15L	85 %	CE, cUL, NEMKO, UL	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	1	40 W			ITE (Commercial)	Universal Input				Chassis Mount		Open Frame	15 V	4000 V	2.67 A
Bel Power Solutions ABC41-1015L	85 %	CE, cUL, NEMKO, UL	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	1	40 W			ITE (Commercial)	Universal Input				Chassis Mount		Open Frame	15 V	4000 V	2.67 A
Bel Power Solutions ABC41-1058L	85 %	CE, cUL, NEMKO, UL	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	1	40 W			ITE (Commercial)	Universal Input				Chassis Mount		Open Frame		4000 V	690 mA
Bel Power Solutions ABC41-1030P-2	85 %	CE, cUL, NEMKO, UL	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	1	40 W			ITE (Commercial)	Universal Input	4-DIP Module	0.5 %	1.33 A	Through Hole	1 %	Open Frame	30 V
Bel Power Solutions ABC41-1005P	85 %	CE, cUL, NEMKO, UL	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	1	40 W	100.24 g	0.221 lb	ITE (Commercial)	Universal Input	4-DIP Module	0.5 %	5 A	Through Hole	1 %	Open Frame	5 V
Bel Power Solutions ABC41-1030L	85 %	CE, cUL, NEMKO, UL	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	1	40 W			ITE (Commercial)	Universal Input				Chassis Mount		Open Frame	30 V	4000 V	1.33 A
Bel Power Solutions ABC41-1005P-2	85 %	CE, cUL, NEMKO, UL	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	1	40 W			ITE (Commercial)	Universal Input	4-DIP Module	0.5 %	5 A	Through Hole	1 %	Open Frame	5 V
Bel Power Solutions ABC41-1048L	85 %	CE, cUL, NEMKO, UL	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	1	40 W			ITE (Commercial)	Universal Input				Chassis Mount		Open Frame	48 V	4000 V	830 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	32	$ 25.44

Description

General part information

ABC41 Series

Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
