3601-3-07-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.

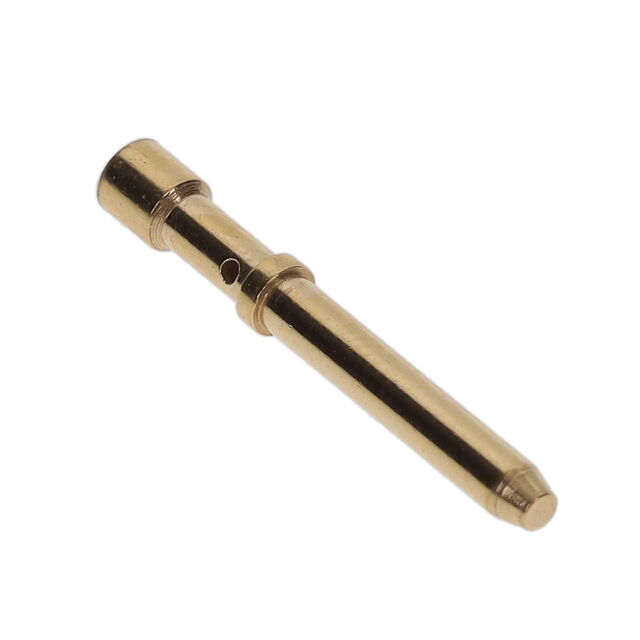

CONN PC PIN CIRC .080DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3601-3-07-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .080DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3601-3-07-34-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.5 in |
| Length - Above Flange [x] | 12.7 mm |
| Length - Below Flange [x] | 6.99 mm |
| Length - Below Flange [x] | 0.275 in |
| Length - Overall [x] | 20.47 mm |
| Length - Overall [x] | 0.806 in |
| Mounting Type | Free Hanging (In-Line) |
| Pin Size - Above Flange [diameter] | 2.03 mm |
| Pin Size - Above Flange [diameter] | 0.08 in |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.90 | |
| 10 | $ 4.45 | |||
| 25 | $ 4.21 | |||
| 50 | $ 4.11 | |||
| 100 | $ 3.92 | |||
| 250 | $ 3.43 | |||
| 500 | $ 3.33 | |||
| 1000 | $ 2.84 | |||
| 3000 | $ 2.64 | |||
Description
General part information
3601-3 Series
PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.080" (2.03mm) Dia
Documents
Technical documentation and resources
No documents available
