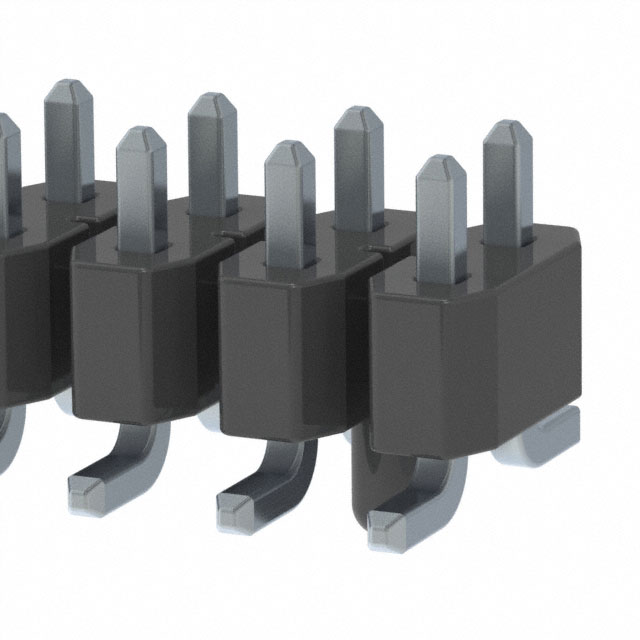

TSM-128-05-T-DV-A

Active

Samtec Inc.

CONN HEADER SMD 56POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-128-05-T-DV-A

Active

Samtec Inc.

CONN HEADER SMD 56POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-128-05-T-DV-A

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	56
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-128 Series

Part	Insulation Height	Insulation Height	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Style	Contact Type	Shrouding	Contact Finish - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions Loaded	Contact Shape	Contact Length - Mating	Contact Length - Mating	Insulation Material	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Color	Number of Rows	Connector Type	Contact Length - Mating [x]	Features	Contact Length - Mating [x]
Samtec Inc. TSM-128-02-L-DV	0.1 in	2.54 mm	Solder	10 çin	0.25 çm	2.54 mm	0.1 in	Surface Mount	Board to Board Cable	Male Pin	Unshrouded	Gold	UL94 V-0	0.1 in	2.54 mm	Tin	All	Square	8.13 mm	0.32 in	Liquid Crystal Polymer (LCP)	56	Push-Pull	-55 °C	125 °C	Phosphor Bronze	Black	2	Cuttable Header
Samtec Inc. TSM-128-01-T-SH-A	0.12 in	3.05 mm	Solder					Surface Mount Right Angle	Board to Board Cable	Male Pin	Unshrouded		UL94 V-0	0.1 in	2.54 mm	Tin	All	Square	5.84 mm		Liquid Crystal Polymer (LCP)	28	Push-Pull	-55 °C	105 ░C	Phosphor Bronze	Black	1	Header	0.23 in	Board Guide
Samtec Inc. TSM-128-01-STL-DV	0.1 in	2.54 mm	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	Surface Mount	Board to Board Cable	Male Pin	Unshrouded	Gold	UL94 V-0	0.1 in	2.54 mm	Tin	All	Square	5.84 mm		Liquid Crystal Polymer (LCP)	56	Push-Pull	-55 °C	125 °C	Phosphor Bronze	Black	2	Cuttable Header	0.23 in
Samtec Inc. TSM-128-01-TL-DV	0.1 in	2.54 mm	Solder			2.54 mm	0.1 in	Surface Mount	Board to Board Cable	Male Pin	Unshrouded		UL94 V-0	0.1 in	2.54 mm	Tin	All	Square	5.84 mm		Liquid Crystal Polymer (LCP)	56	Push-Pull	-55 °C	105 ░C	Phosphor Bronze	Black	2	Cuttable Header	0.23 in
Samtec Inc. TSM-128-01-T-DH-P-TR	0.24 in	6.1 mm	Solder			2.54 mm	0.1 in	Surface Mount Right Angle	Board to Board Cable	Male Pin	Unshrouded		UL94 V-0	0.1 in	2.54 mm	Tin	All	Square	5.84 mm		Liquid Crystal Polymer (LCP)	56	Push-Pull	-55 °C	105 ░C	Phosphor Bronze	Black	2	Header	0.23 in	Pick and Place
Samtec Inc. TSM-128-05-T-DV-A	0.1 in	2.54 mm	Solder			2.54 mm	0.1 in	Surface Mount	Board to Board Cable	Male Pin	Unshrouded		UL94 V-0	0.1 in	2.54 mm	Tin	All	Square			Liquid Crystal Polymer (LCP)	56	Push-Pull	-55 °C	105 ░C	Phosphor Bronze	Black	2	Cuttable Header	0.075 in	Board Guide	1.9 mm
Samtec Inc. TSM-128-01-F-SH-K-TR	0.12 in	3.05 mm	Solder	3 µin	0.076 µm			Surface Mount Right Angle	Board to Board Cable	Male Pin	Unshrouded	Gold	UL94 V-0	0.1 in	2.54 mm	Tin	All	Square	5.84 mm		Liquid Crystal Polymer (LCP)	28	Push-Pull	-55 °C	125 °C	Phosphor Bronze	Black	1	Header	0.23 in	Pick and Place
Samtec Inc. TSM-128-03-S-DV	0.1 in	2.54 mm	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	Surface Mount	Board to Board Cable	Male Pin	Unshrouded	Gold	UL94 V-0	0.1 in	2.54 mm	Tin	All	Square	10.67 mm	0.42 in	Liquid Crystal Polymer (LCP)	56	Push-Pull	-55 °C	125 °C	Phosphor Bronze	Black	2	Cuttable Header
Samtec Inc. TSM-128-04-L-DV-A-P	0.1 in	2.54 mm	Solder	10 çin	0.25 çm	2.54 mm	0.1 in	Surface Mount	Board to Board Cable	Male Pin	Unshrouded	Gold	UL94 V-0	0.1 in	2.54 mm	Tin	All	Square	3.05 mm	0.12 in	Liquid Crystal Polymer (LCP)	56	Push-Pull	-55 °C	125 °C	Phosphor Bronze	Black	2	Cuttable Header		Board Guide Pick and Place
Samtec Inc. TSM-128-01-S-SH-P	0.12 in	3.05 mm	Solder	30 Áin	0.76 Ám			Surface Mount Right Angle	Board to Board Cable	Male Pin	Unshrouded	Gold	UL94 V-0	0.1 in	2.54 mm	Tin	All	Square	5.84 mm		Liquid Crystal Polymer (LCP)	28	Push-Pull	-55 °C	125 °C	Phosphor Bronze	Black	1	Header	0.23 in	Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	8	$ 4.28

Description

General part information

TSM-128 Series

Connector Header Surface Mount 56 position 0.100" (2.54mm)
