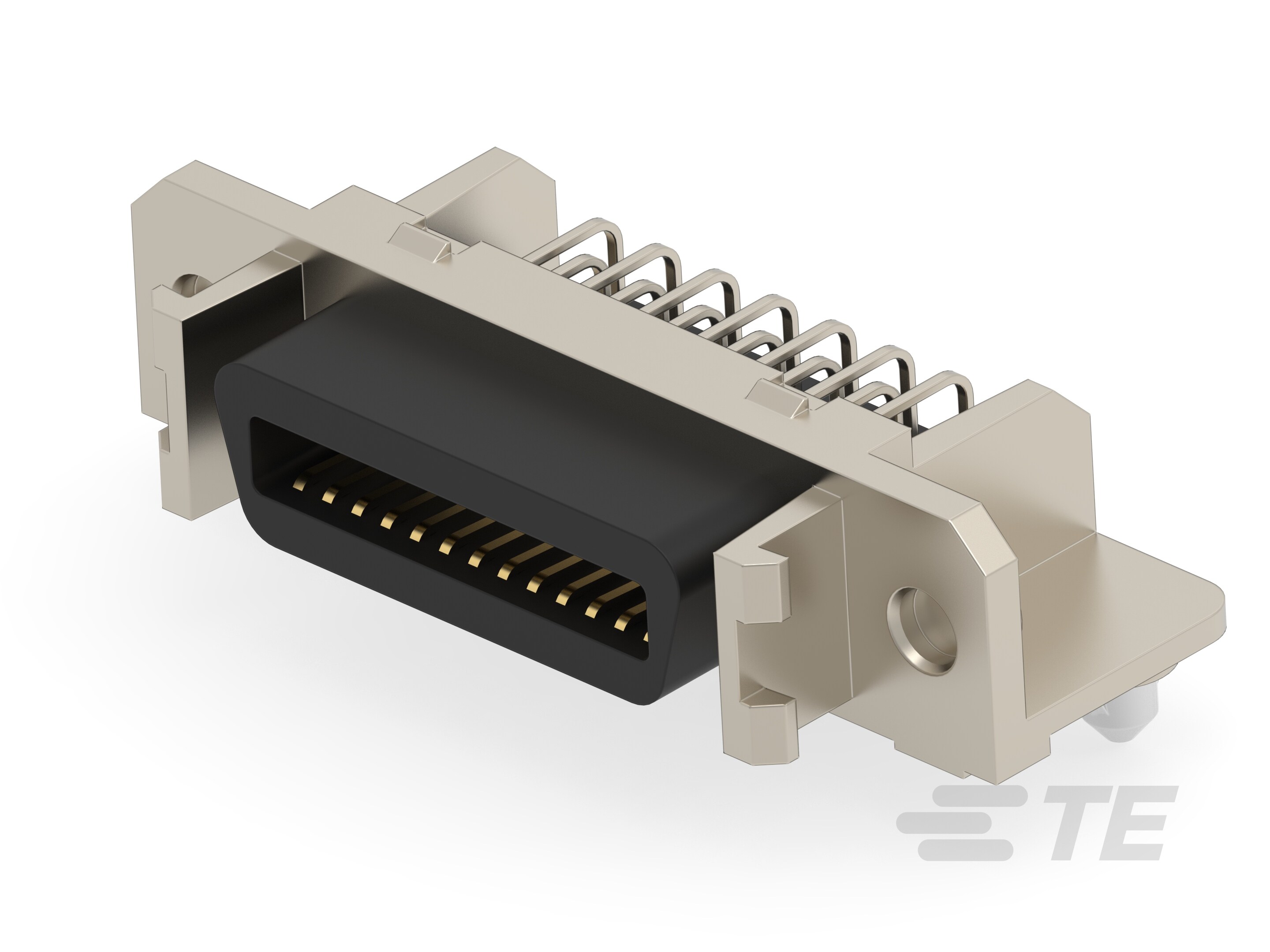

SCSI .050 REC ASS'Y 26P PB-FREE-3-2232516-1

3-2232516-1

Active
TE Connectivity AMP Connectors

SCSI .050 REC ASS'Y 26P PB-FREE

Find alt
SCSI .050 REC ASS'Y 26P PB-FREE-3-2232516-1

3-2232516-1

Active
TE Connectivity AMP Connectors

SCSI .050 REC ASS'Y 26P PB-FREE

Find alt

Description

General part information

SCSI Connectors Series

26 Position D-Shaped Connector, Receptacle, Board-to-Board, Panel Mount & Board Mount, 2 Shell Size, 1.27 mm [.05 in] Centerline, SCSI Connectors

Technical Specifications

Parameters and characteristics for this part

Specification3-2232516-1
Connector StyleOuter Shroud Contacts
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness11.8 µin
FeaturesBoard Lock
Flange FeatureHousing, Shell (M2.6), Latchblocks
Mounting TypePanel Mount, Through Hole, Right Angle
Number of Positions26
Number of Rows2
TerminationSolder
TypeSCSI
