SCSI Connectors Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SCSI .050 PLUG ASS'Y 26P

Part	Contact Finish	Termination	Connector Style	Number of Rows	Connector Type	Number of Positions	Mounting Type	Features	Type	Contact Finish Thickness	Flange Feature
TE Connectivity AMP Connectors 3-2232346-1	Gold	Solder Cup	Center Strip Contacts	2	Plug	26	Free Hanging (In-Line)	Backshell	SCSI	10 Ąin
TE Connectivity AMP Connectors 1-2232516-1	Gold	Solder	Outer Shroud Contacts	2	Receptacle	14	Panel Mount Right Angle Through Hole	Board Lock	SCSI	30 µin	Housing Shell (M2.6)

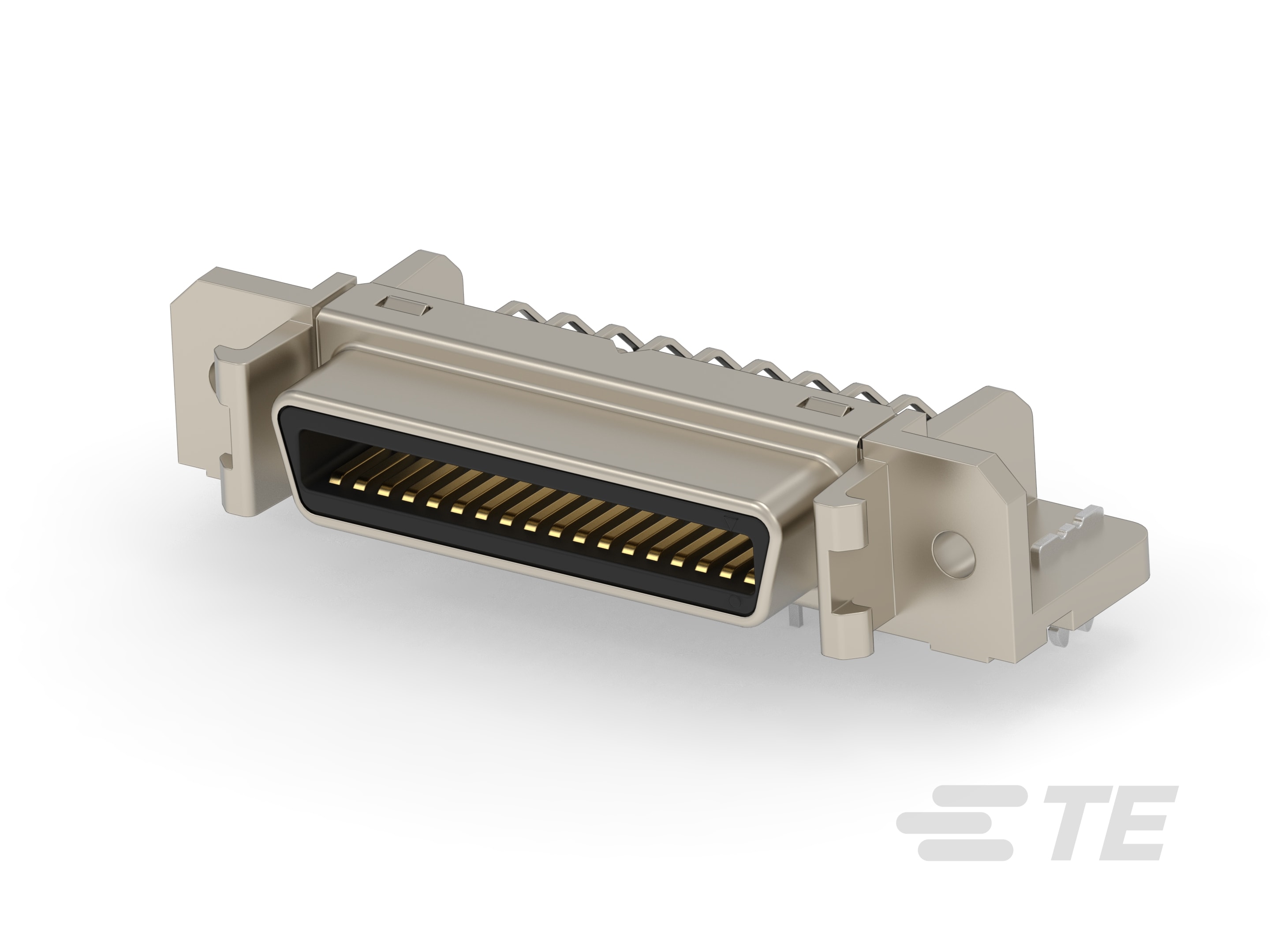

TE Connectivity AMP Connectors 4-2271101-1	Gold	Solder	Outer Shroud Contacts	2	Receptacle	36	Right Angle Through Hole	Board Lock	SCSI	10 Ąin	Housing Latchblocks Shell (M2.6)

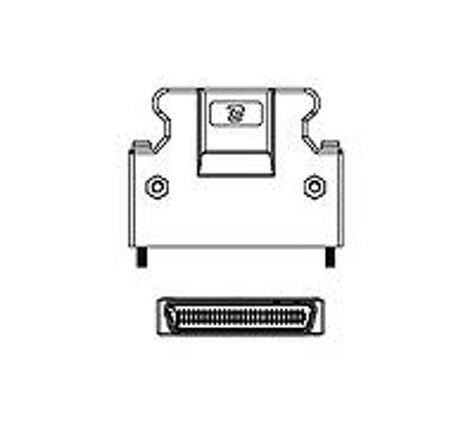

TE Connectivity AMP Connectors 3-2232346-2
TE Connectivity AMP Connectors 2-2232516-1	Gold	Solder	Outer Shroud Contacts	2	Receptacle	20	Panel Mount Right Angle Through Hole	Board Lock	SCSI	11.8 µin	Housing Latchblocks Shell (M2.6)
TE Connectivity AMP Connectors 2-2271101-1	Gold	Solder	Outer Shroud Contacts	2	Receptacle	20	Panel Mount Through Hole	Board Lock	SCSI	11.8 µin	Board Side (M2.6) Latchblocks

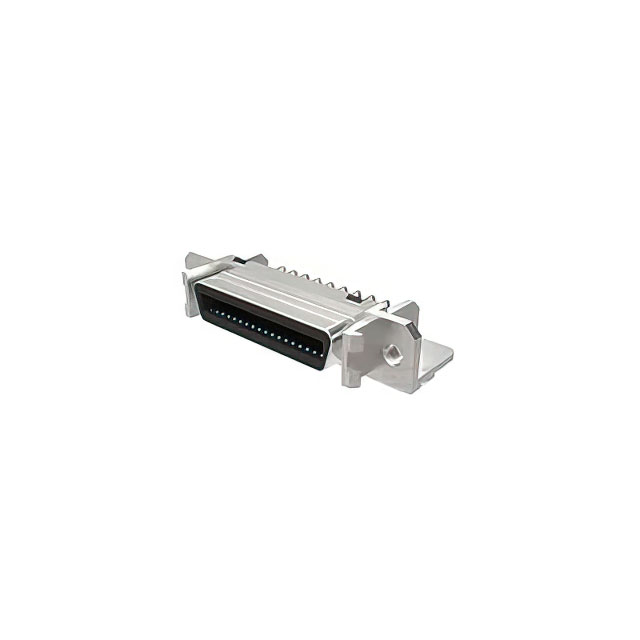

TE Connectivity AMP Connectors 5-2232516-1	Gold	Solder	Outer Shroud Contacts	2	Receptacle	50	Panel Mount Right Angle Through Hole	Board Lock	SCSI	30 µin	Housing Shell (M2.6)
TE Connectivity AMP Connectors 5-2232346-2	Gold	Solder Cup	Center Strip Contacts	2	Plug	50	Free Hanging (In-Line)	Backshell Mounting Hardware	SCSI	30 µin

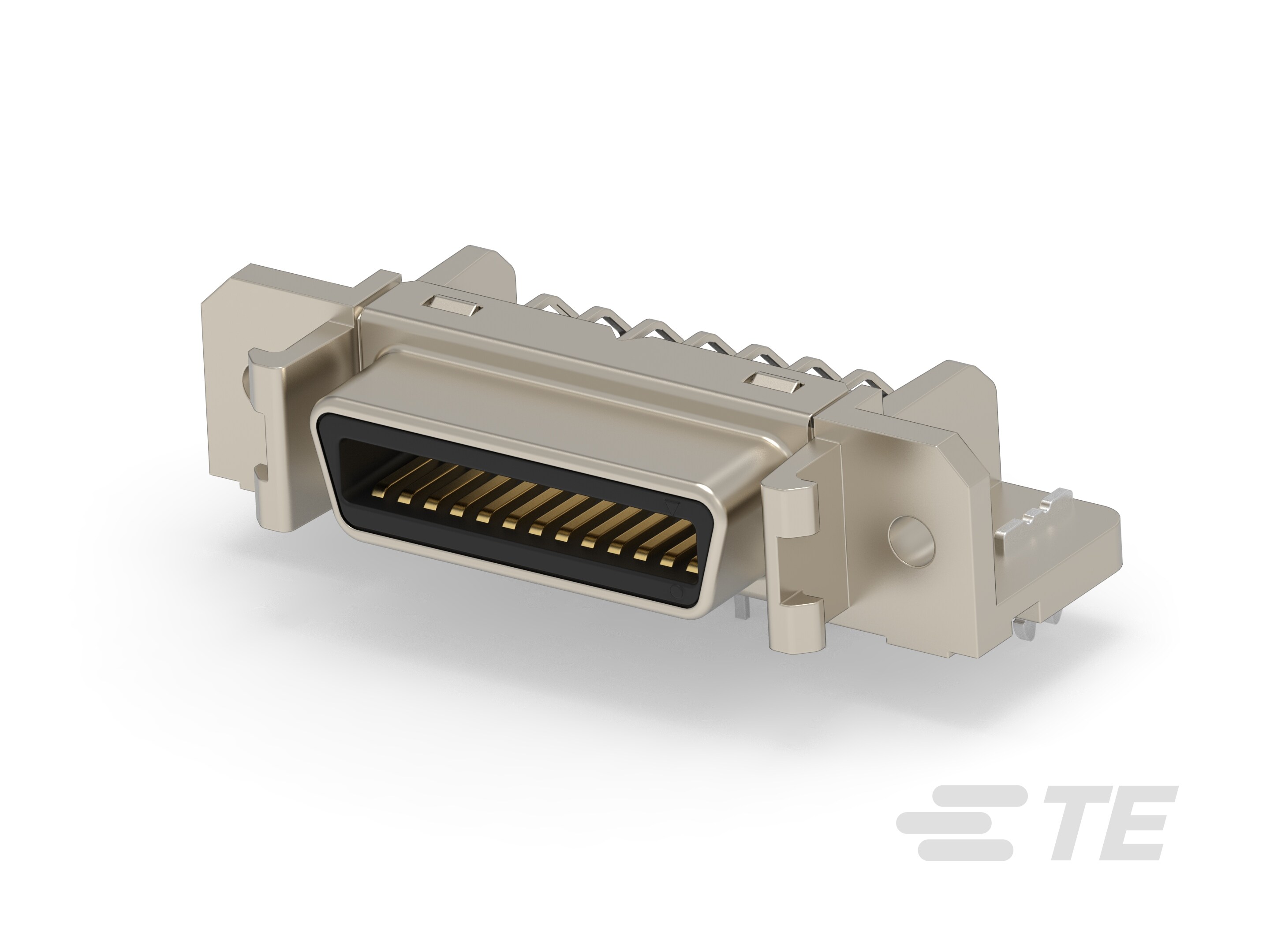

TE Connectivity AMP Connectors 3-2271101-1	Gold	Solder	Outer Shroud Contacts	2	Receptacle	26	Right Angle Through Hole	Board Lock	SCSI	10 Ąin	Housing Latchblocks Shell (M2.6)
TE Connectivity AMP Connectors 1-2232346-1	Gold	Solder Cup	Center Strip Contacts	2	Plug	14	Free Hanging (In-Line)	Backshell	SCSI	10 Ąin
