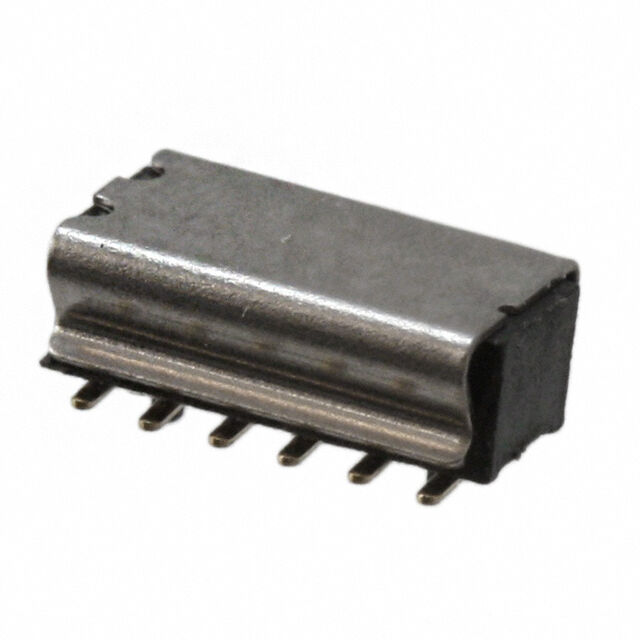

Specification	M40-3100645R

Applications	Telecommunications, General Purpose, Industrial
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating	1 A
Fastening Type	Push-Pull
Features	Board Guide, Pick and Place
Insulation Color	Black
Insulation Height	0.089 in
Insulation Material	Polyamide (PA6T), Glass Filled, Nylon 6T
Mated Stacking Height	4.25 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.039 in
Row Spacing - Mating	0.039 in
Style	Board
Termination	Solder

M40-310 Series

Part	Features	Mated Stacking Height	Mounting Type	Number of Positions Loaded	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Contact Type	Current Rating	Contact Finish Thickness - Mating	Termination	Number of Positions	Number of Rows	Pitch - Mating	Connector Type	Insulation Height	Row Spacing - Mating	Material Flammability Rating	Style	Insulation Color	Contact Shape	Applications	Contact Material	Insulation Material
Harwin Inc. M40-3102045R	Board Guide Pick and Place	4.25 mm	Surface Mount	All	Push-Pull	-40 °C	105 °C	Gold	Female Socket	1 A	Flash	Solder	40	2	0.039 in	Receptacle	0.089 in	0.039 in	UL94 V-0	Board	Black	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)
Harwin Inc. M40-3100645R	Board Guide Pick and Place	4.25 mm	Surface Mount	All	Push-Pull	-40 °C	105 °C	Gold	Female Socket	1 A	Flash	Solder	12	2	0.039 in	Receptacle	0.089 in	0.039 in	UL94 V-0	Board	Black	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)
Harwin Inc. M40-3100845R	Board Guide Pick and Place	4.25 mm	Surface Mount	All	Push-Pull	-40 °C	105 °C	Gold	Female Socket	1 A	Flash	Solder	16	2	0.039 in	Receptacle	0.089 in	0.039 in	UL94 V-0	Board	Black	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)
Harwin Inc. M40-3102545R	Board Guide Pick and Place	4.25 mm	Surface Mount	All	Push-Pull	-40 °C	105 °C	Gold	Female Socket	1 A	Flash	Solder	50	2	0.039 in	Receptacle	0.089 in	0.039 in	UL94 V-0	Board	Black	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)
