H3BKH-3436M

Active

Assmann WSW Components

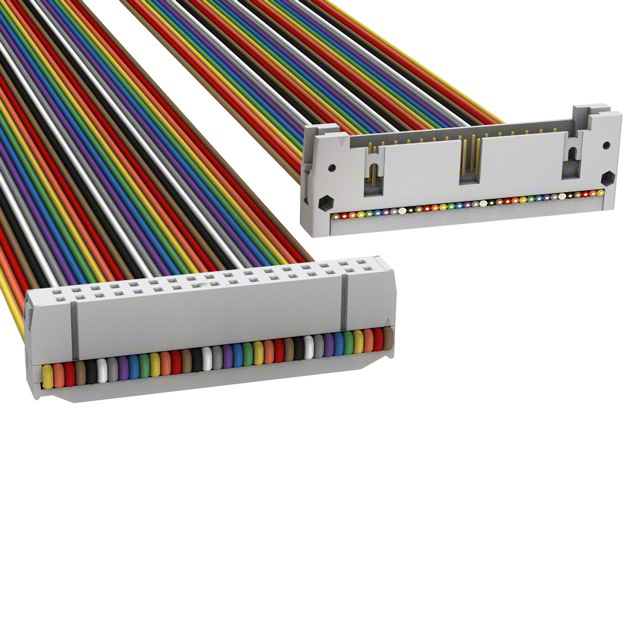

IDC CBL - HHSR34H/AE34M/HHPK34H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR34H/AE34M/HHPK34H

Technical Specifications

Parameters and characteristics for this part

Specification	H3BKH-3436M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Strain Relief (Socket)
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Cable Termination	Number of Positions	Contact Finish	Number of Rows	Pitch - Cable	Pitch - Cable	Shielding	Features	Pitch - Connector	Pitch - Connector	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Color	Length [x]	Length [x]	Length	Length	Length
Assmann WSW Components H3BKH-3418M	IDC	34	Gold	2	0.05 "	1.27 mm	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	0.1 in	2.54 mm	Socket to Plug	15 µin	0.38 µm	Multiple Ribbon	457.2 mm	1.5 ft
Assmann WSW Components H3BKH-3436M	IDC	34	Gold	2	0.05 "	1.27 mm	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	0.1 in	2.54 mm	Socket to Plug	15 µin	0.38 µm	Multiple Ribbon	914.4 mm	3 ft
Assmann WSW Components H3BKH-3418G	IDC	34	Gold	2	0.05 "	1.27 mm	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	0.1 in	2.54 mm	Socket to Plug	15 µin	0.38 µm		457.2 mm	1.5 ft
Assmann WSW Components H3BKH-3406G	IDC	34	Gold	2	0.05 "	1.27 mm	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	0.1 in	2.54 mm	Socket to Plug	15 µin	0.38 µm				152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)
