AR 28-HZW/TN

Active

Assmann WSW Components

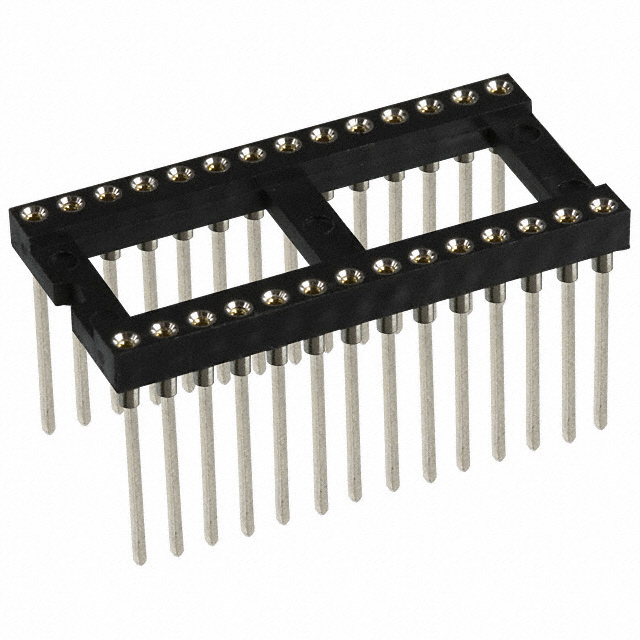

28P DIP GOLD BERYLLIUM COPPER ALLOY -40℃~+105℃ 2.54MM PLUGIN IC / TRANSISTOR SOCKET ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AR 28-HZW/TN

Active

Assmann WSW Components

28P DIP GOLD BERYLLIUM COPPER ALLOY -40℃~+105℃ 2.54MM PLUGIN IC / TRANSISTOR SOCKET ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AR 28-HZW/TN

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Beryllium Copper
Contact Resistance	4 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Thermoplastic, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	28
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Wire Wrap
Type	DIP
Type	0.6 in
Type	15.24 mm

AR 28-HZ Series

Part	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Pitch - Post	Pitch - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post	Termination	Housing Material	Type	Type	Type	Number of Positions or Pins (Grid)	Contact Resistance
Assmann WSW Components AR 28-HZL/01/7-TT	Open Frame	3 A	-40 °C	105 ░C	Tin	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	Through Hole	Beryllium Copper	10 çin	0.25 çm	Gold	200 µin	5.08 µm	Beryllium Copper	Solder	Polyester Thermoplastic	0.3 "	7.62 mm	DIP	28	4 mOhm
Assmann WSW Components AR 28-HZL/01-TT	Open Frame	3 A	-40 °C	105 ░C	Tin	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	Through Hole	Beryllium Copper	10 çin	0.25 çm	Gold	200 µin	5.08 µm	Beryllium Copper	Solder	Polyester Thermoplastic	0.6 in	15.24 mm	DIP	28	4 mOhm
Assmann WSW Components AR 28-HZL-TT	Open Frame	3 A	-40 °C	105 ░C	Tin	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	Through Hole	Beryllium Copper				200 µin	5.08 µm	Beryllium Copper	Solder	Polyester Thermoplastic	0.6 in	15.24 mm	DIP	28	4 mOhm
Assmann WSW Components AR 28-HZL/07/7-TT	Open Frame	3 A	-40 °C	105 ░C	Tin	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	Through Hole	Beryllium Copper	30 Áin	0.76 Ám	Gold	200 µin	5.08 µm	Beryllium Copper	Solder	Polyester Thermoplastic	0.3 "	7.62 mm	DIP	28	4 mOhm
Assmann WSW Components AR 28-HZL/07-TT	Open Frame	3 A	-40 °C	105 ░C	Tin	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	Through Hole	Beryllium Copper	30 Áin	0.76 Ám	Gold	200 µin	5.08 µm	Beryllium Copper	Solder	Polyester Thermoplastic	0.6 in	15.24 mm	DIP	28	4 mOhm
Assmann WSW Components AR 28-HZW/TN	Open Frame	3 A	-40 °C	105 ░C	Tin	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	Through Hole	Beryllium Copper			Gold	200 µin	5.08 µm	Beryllium Copper	Wire Wrap	Polyester Thermoplastic	0.6 in	15.24 mm	DIP	28	4 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.33
		17	$ 4.36
		34	$ 4.15
		51	$ 4.04
		102	$ 3.84
		255	$ 3.60
		510	$ 3.43
		1003	$ 3.27
		2516	$ 3.07
LCSC	Piece	1	$ 6.80
		204	$ 2.72
		493	$ 2.62
		1003	$ 2.58

Description

General part information

AR 28-HZ Series

28 (2 x 14) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
