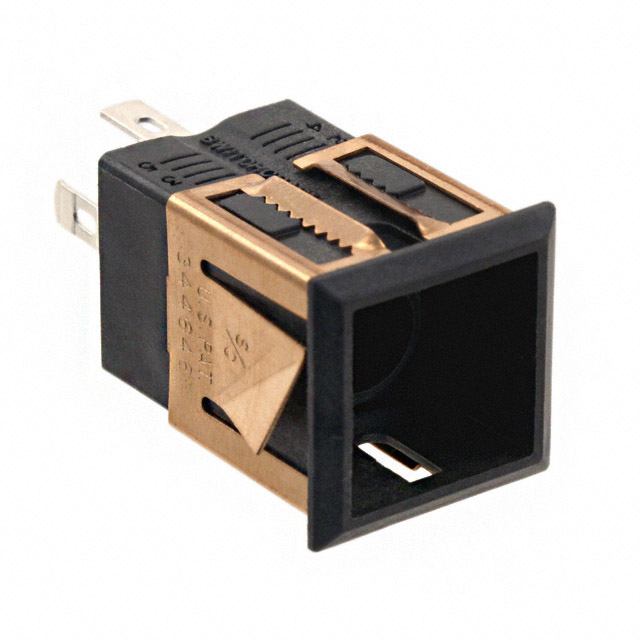

LUS001ST

Active

Switchcraft Inc.

SWITCH CONTACT BLOCKS / SWITCH KITS ILLUM PB SW SQU

Search across all available documentation for this part.

Active

Switchcraft Inc.

SWITCH CONTACT BLOCKS / SWITCH KITS ILLUM PB SW SQU

Technical Specifications

Parameters and characteristics for this part

Switch Contact Blocks / Switch Kits ILLUM PB SW SQU

Part	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Marking	Current Rating (Amps)	Mounting Type	Circuit	Type	Termination Style	Actuator Type	Switch Function
Switchcraft Inc. LUS001ST	28 V	15.7 mm	15.7 mm	No Marking	250 mA	Panel Mount, Snap-In	SPST-NO	Illuminated, Standard	Quick Connect - 0.110" (2.8mm)	Plunger for Cap	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch Contact Blocks / Switch Kits ILLUM PB SW SQU
