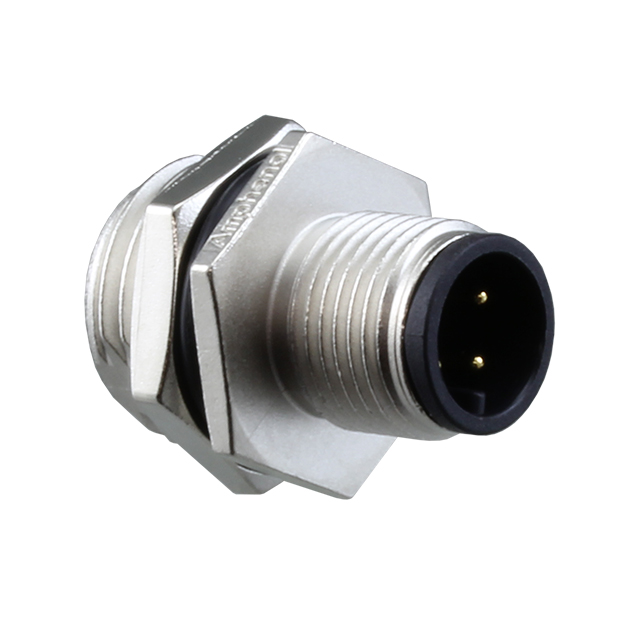

M12A-03PMMS-SH8002

Active

Amphenol LTW

CONN PLUG MALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-03PMMS-SH8002

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-3
Shielding	Shielded
Voltage Rating	250 VAC

Part	Ingress Protection	Shell Finish	Shell Size - Insert	Mounting Feature	Connector Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish - Mating	Color	Current Rating (Amps)	Orientation	Shell Material	Primary Material	Insert Material	Shielding
Amphenol LTW M12A-03PMMS-SH8002	IP68 IP69K	Nickel	M12-3	Bulkhead - Rear Side Nut	Male Pins Plug	Copper Alloy	85 °C	-40 °C	250 VAC	Gold	Silver	4 A	A	Zinc Alloy	Metal	Polyamide (PA) Nylon Glass Filled	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Solder Cup

Technical documentation and resources

No documents available
