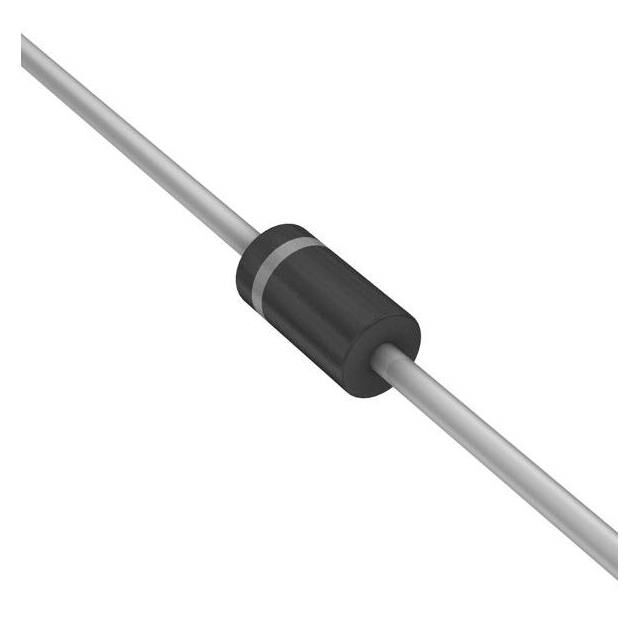

SB280E-G

Active

Comchip Technology

DIODE SCHOTTKY 80V 2A DO15

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 80V 2A DO15

Technical Specifications

Parameters and characteristics for this part

Specification	SB280E-G

Capacitance @ Vr, F	170 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	500 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-204AC, DO-15, Axial
Speed	200 mA, 500 ns
Supplier Device Package	DO-15
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	80 V
Voltage - Forward (Vf) (Max) @ If	850 mV

DIODE SCHOTTKY 80V 2A DO15

Part	Package / Case	Mounting Type	Speed	Current - Average Rectified (Io)	Technology	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Comchip Technology SB280E-G	Axial, DO-15, DO-204AC	Through Hole	200 mA, 500 ns	2 A	Schottky	500 µA	850 mV	80 V	170 pF	DO-15	150 °C	-65 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 80 V 2A Through Hole DO-15
