2905656
ActivePhoenix Contact

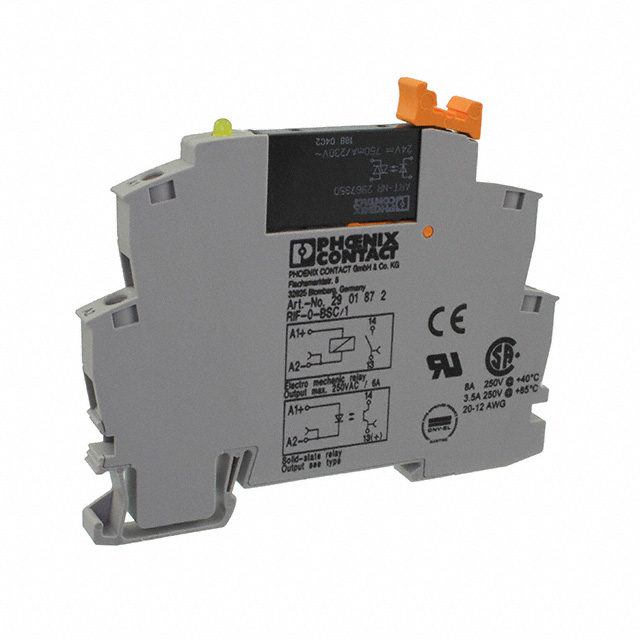

SSR RELAY SPST-NO 750MA 24-253V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2905656
ActivePhoenix Contact
SSR RELAY SPST-NO 750MA 24-253V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2905656 | 290565 Series |
|---|---|---|
| Approval Agency | EAC, DNV | EAC, DNV |
| Load Current | 0.75 A | 0.75 - 100 A |
| Mounting Type | DIN Rail | DIN Rail |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Output Type | AC | DC, AC |
| Package / Case | Module | Module |
| Supplier Device Package | Module | Module |
| Termination Style | Screw Terminal | Screw Terminal |
| Voltage - Input | 24 V | 24 V |
| Voltage - Load [Max] | 253 V | 33 - 253 V |
| Voltage - Load [Min] | 24 V | 3 - 24 V |
290565 Series
SSR RELAY SPST-NO 3A 3-33V
| Part | Approval Agency | Supplier Device Package | Package / Case | Load Current | Mounting Type | Termination Style | Voltage - Load [Max] | Voltage - Load [Min] | Voltage - Input | Operating Temperature [Min] | Operating Temperature [Max] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2905657 | DNV, EAC | Module | Module | 3 A | DIN Rail | Screw Terminal | 33 V | 3 V | 24 V | -25 °C | 60 °C | DC |
Phoenix Contact 2905658 | DNV, EAC | Module | Module | 100 mA | DIN Rail | Screw Terminal | 48 V | 3 V | 24 V | -25 °C | 60 °C | DC |
Phoenix Contact 2905656 | DNV, EAC | Module | Module | 0.75 A | DIN Rail | Screw Terminal | 253 V | 24 V | 24 V | -25 °C | 60 °C | AC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.06 | |
Description
General part information
290565 Series
Solid State SPST-NO (1 Form A) Module
