2905658

Active

Phoenix Contact

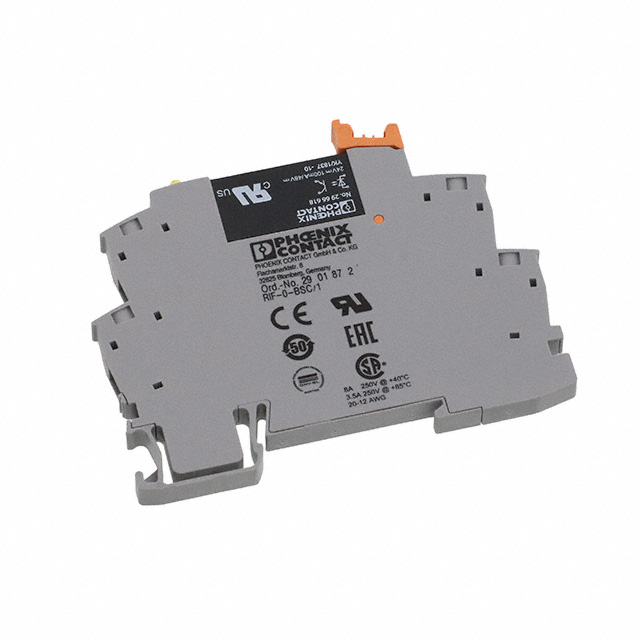

SSR RELAY SPST-NO 100MA 3-48V

Search across all available documentation for this part.

Active

Phoenix Contact

SSR RELAY SPST-NO 100MA 3-48V

Technical Specifications

Parameters and characteristics commom to parts in this series

SSR RELAY SPST-NO 3A 3-33V

Part	Approval Agency	Supplier Device Package	Package / Case	Load Current	Mounting Type	Termination Style	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Input	Operating Temperature [Min]	Operating Temperature [Max]	Output Type
Phoenix Contact 2905657	DNV, EAC	Module	Module	3 A	DIN Rail	Screw Terminal	33 V	3 V	24 V	-25 °C	60 °C	DC
Phoenix Contact 2905658	DNV, EAC	Module	Module	100 mA	DIN Rail	Screw Terminal	48 V	3 V	24 V	-25 °C	60 °C	DC
Phoenix Contact 2905656	DNV, EAC	Module	Module	0.75 A	DIN Rail	Screw Terminal	253 V	24 V	24 V	-25 °C	60 °C	AC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.19

General part information

Solid State SPST-NO (1 Form A) Module
