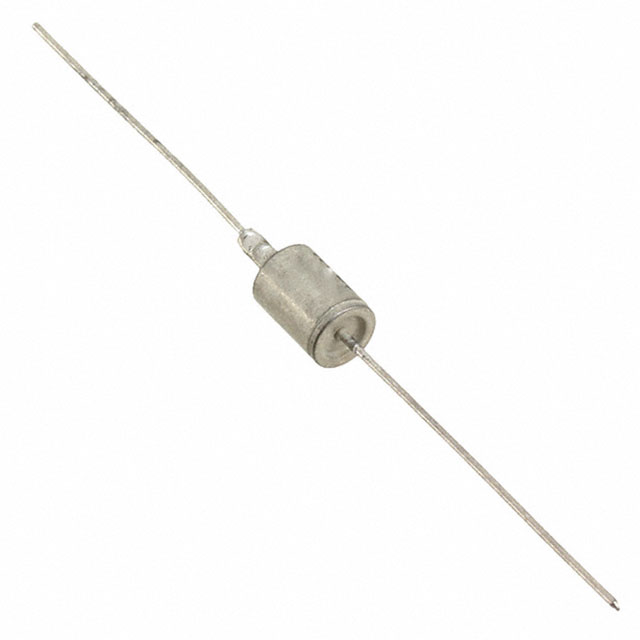

1N3016BE3

Active

Microchip Technology

VOLTAGE REGULATOR DO-41 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1N3016BE3

Active

Microchip Technology

VOLTAGE REGULATOR DO-41 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1N3016BE3	1N3016 Series

	-	-
Current - Reverse Leakage @ Vr	150 µA	150 µA
Grade	-	Military
Impedance (Max) (Zzt) [Max]	3.5 Ohms	3.5 Ohms
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature [Max]	175 ░C	175 - 347 °F
Operating Temperature [Min]	-65 °C	-65 - -55 °C
Package / Case	Axial, DO-202AA, DO-13	DO-204AL, DO-41, Axial, DO-213AB, MELF (Glass), MELF, DO-202AA, DO-13
Power - Max [Max]	1 W	1 W
Qualification	-	MIL-PRF-19500/124, MIL-PRF-19500/115
Supplier Device Package	DO-13 (DO-202AA)	DO-204AL (DO-41), DO-41, DO-213AB (MELF, LL41), DO-213AB, DO-13 (DO-202AA)
Tolerance	5 %	1 - 5 %
Voltage - Forward (Vf) (Max) @ If	1.5 V	1.2 - 1.5 V
Voltage - Zener (Nom) (Vz)	6.8 V	6.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 32.05
Newark	Each	100	$ 32.06
		500	$ 30.83

1N3016 Series

ZENER DIODE SINGLE 2-PIN 6.8V, 5%, 3.5OHM, 1000MW DO-41 BAG

Part	Voltage - Zener (Nom) (Vz)	Voltage - Forward (Vf) (Max) @ If	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Qualification	Impedance (Max) (Zzt) [Max]	Grade	Mounting Type	Package / Case	Power - Max [Max]	Current - Reverse Leakage @ Vr
Microchip Technology JANTX1N3016B-1	6.8 V	1.2 V	5 %	-55 °C	347 °F	DO-204AL (DO-41)	MIL-PRF-19500/124	3.5 Ohms	Military	Through Hole	Axial, DO-204AL, DO-41	1 W	150 µA
Microchip Technology 1N3016B-1
Microchip Technology JAN1N3016D-1	6.8 V	1.2 V	1 %	-55 °C	347 °F	DO-204AL (DO-41)	MIL-PRF-19500/115	3.5 Ohms	Military	Through Hole	Axial, DO-204AL, DO-41	1 W	150 µA
Microchip Technology JAN1N3016C-1	6.8 V	1.2 V	5 %	-55 °C	347 °F	DO-41	MIL-PRF-19500/115	3.5 Ohms	Military	Through Hole	Axial, DO-204AL, DO-41	1 W	150 µA
Microchip Technology 1N3016BE3
Microchip Technology 1N3016B-1/TR
Microchip Technology 1N3016B-1E3	6.8 V	1.2 V	5 %	-55 °C	175 ░C	DO-204AL (DO-41)		3.5 Ohms		Through Hole	Axial, DO-204AL, DO-41	1 W	150 µA
Microchip Technology 1N3016B-1E3
Microchip Technology JAN1N3016CUR-1	6.8 V	1.2 V	2 %	-55 °C	347 °F	DO-213AB (MELF, LL41)	MIL-PRF-19500/115	3.5 Ohms	Military	Surface Mount	DO-213AB, MELF (Glass)	1 W	150 µA
Microchip Technology JANTX1N3016DUR-1
Microchip Technology JANTXV1N3016C-1
Microchip Technology JANTXV1N3016C-1	6.8 V	1.2 V	2 %	-55 °C	347 °F	DO-41	MIL-PRF-19500/115	3.5 Ohms	Military	Through Hole	Axial, DO-204AL, DO-41	1 W	150 µA
Microchip Technology JANTXV1N3016DUR-1	6.8 V	1.2 V	1 %	-55 °C	347 °F	DO-213AB (MELF, LL41)	MIL-PRF-19500/115	3.5 Ohms	Military	Surface Mount	DO-213AB, MELF (Glass)	1 W	150 µA
Microchip Technology 1N3016BUR-1
Microchip Technology 1N3016B-1/TR	6.8 V	1.2 V	5 %	-55 °C	347 °F	DO-204AL (DO-41)		3.5 Ohms		Through Hole	Axial, DO-204AL, DO-41	1 W	150 µA
Microchip Technology 1N3016BUR-1	6.8 V	1.2 V	5 %	-55 °C	347 °F	DO-213AB		3.5 Ohms		Surface Mount	DO-213AB, MELF	1 W	150 µA
Microchip Technology JANTX1N3016DUR-1	6.8 V	1.2 V	1 %	-55 °C	347 °F	DO-213AB (MELF, LL41)	MIL-PRF-19500/115	3.5 Ohms	Military	Surface Mount	DO-213AB, MELF (Glass)	1 W	150 µA
Microchip Technology JAN1N3016CUR-1
Microchip Technology 1N3016B-1	6.8 V	1.2 V	5 %	-55 °C	347 °F	DO-204AL (DO-41)		3.5 Ohms		Through Hole	Axial, DO-204AL, DO-41	1 W	150 µA
Microchip Technology 1N3016BE3	6.8 V	1.5 V	5 %	-65 °C	175 ░C	DO-13 (DO-202AA)		3.5 Ohms		Through Hole	Axial, DO-13, DO-202AA	1 W	150 µA

Description

General part information

1N3016 Series

Zener Diode 6.8 V 1 W ±5% Through Hole DO-13 (DO-202AA)
