302-10-001-00-900800
ActiveMill-Max Manufacturing Corp.

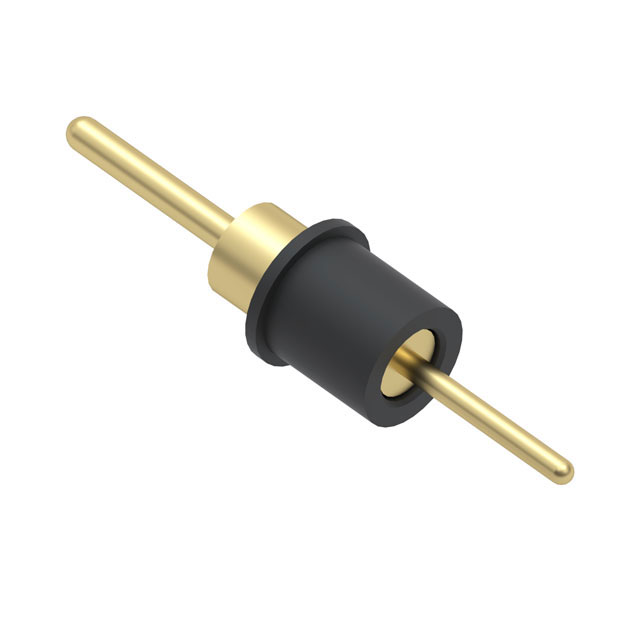

INSULATED TERMINAL PIN
Deep-Dive with AI
Search across all available documentation for this part.
302-10-001-00-900800
ActiveMill-Max Manufacturing Corp.
INSULATED TERMINAL PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 302-10-001-00-900800 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter | 2.79 mm |
| Flange Diameter [diameter] | 0.11 in |
| Insulation | Insulated |
| Insulation Color | Black |
| Length - Above Flange | 0.166 in |
| Length - Above Flange | 4.22 mm |
| Length - Below Flange [x] | 3.89 mm |
| Length - Below Flange [x] | 0.153 in |
| Length - Overall [x] | 12.12 mm |
| Length - Overall [x] | 0.477 in |
| Material - Insulation | Polyamide (PA46), Nylon 4/6 |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.025 in |
| Pin Size - Above Flange [diameter] | 0.64 mm |
| Pin Size - Below Flange [diameter] | 0.46 mm |
| Pin Size - Below Flange [diameter] | 0.018 " |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.76 | |
| 10 | $ 0.64 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.42 | |||
| 2500 | $ 0.38 | |||
Description
General part information
302-10 Series
PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Dia
