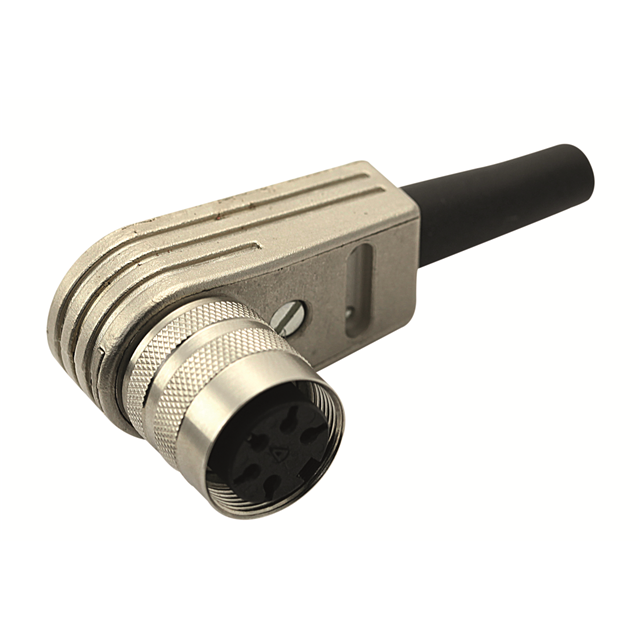

T 3476 058

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Technical Specifications

Parameters and characteristics for this part

Specification	T 3476 058

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Features	Coupling Nut, Backshell, Cable Clamp, Strain Relief
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-7
Shielding	Shielded
Voltage Rating	250 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish - Mating	Connector Type	Material Flammability Rating	Insert Material	Applications	Current Rating (Amps)	Mounting Type	Shell Material	Shell Size - Insert	Color	Shell Finish	Features	Orientation	Primary Material	Voltage Rating	Ingress Protection	Shielding	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol Sine Systems Corp T 3476 038	100 °C	-40 °C	7	Gold	Female Sockets Plug	UL94 V-0	Thermoplastic	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	7 A	Free Hanging (In-Line)	Zinc Die Cast	M16-7	Black	Nickel	Backshell Cable Clamp Coupling Nut Strain Relief	Keyed	Metal	250 VDC	IP40	Shielded	4 mm 6 mm	0.157 in 0.236 in
Amphenol Sine Systems Corp T 3476 058	100 °C	-40 °C	7	Gold	Female Sockets Plug	UL94 V-0	Thermoplastic	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	7 A	Free Hanging (In-Line) Right Angle	Zinc Die Cast	M16-7	Silver	Nickel	Backshell Cable Clamp Coupling Nut Strain Relief	Keyed	Metal	250 VDC	IP40	Shielded	4 mm 6 mm	0.157 in 0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position Circular Connector Plug, Female Sockets Solder Cup
