Description Specifications Series Pricing CAD Documents

Description

General part information

1775855 Series

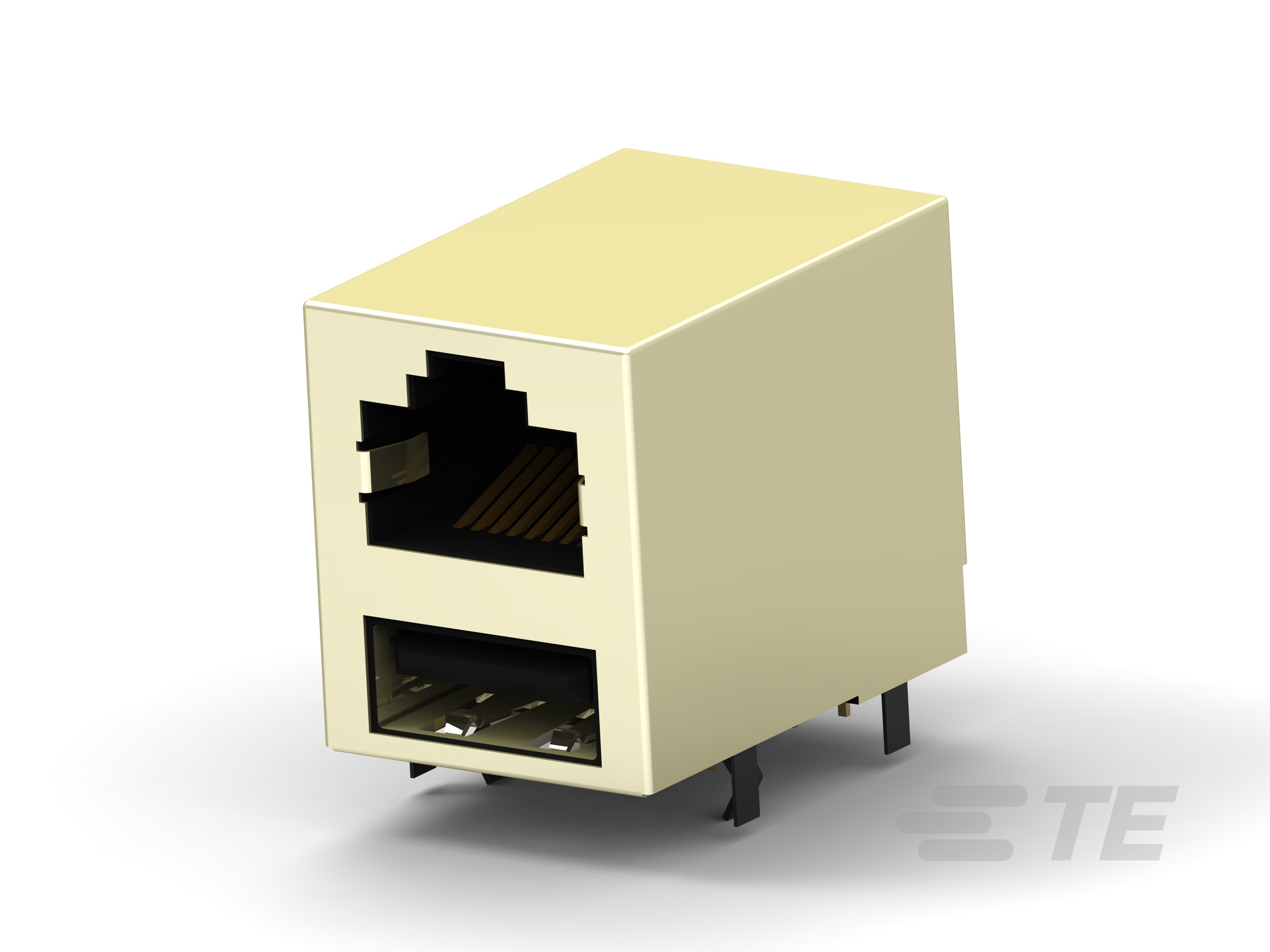

The 1-1775855-1 is a 4-position 1-port 2A PCB right angle RJ45/USB Modular Jack with gold-plated phosphor bronze contacts, nickel-plated shell and solder termination.

Technical Specifications

Parameters and characteristics for this part

Specification	1-1775855-1

Connector Type	Jack with USB A, Ethernet, RJ45
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Phosphor Bronze
Features	Board Lock
Housing Material	Glass Filled, Polybutylene Terephthalate, PBT
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Rows	2
Orientation Angle	90 °
Orientation Direction	Right
Shielding	Shielded
Tab Direction	Up
Termination	Solder

1775855 Series

Part	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Housing Material	Contact Finish	Mounting Type	Number of Ports	Tab Direction	Orientation Angle	Orientation Direction	Shielding	Number of Rows	Features	LED Color	Contact Material	Termination	Connector Type	Number of Positions	Number of Contacts	Ratings
TE Connectivity AMP Connectors 1775855-2	0	Flash	Flash	Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	1	Up	90 °	Right	Shielded	2	Board Lock	Does Not Contain LED	Phosphor Bronze	Solder	Ethernet Jack with USB A RJ45	8	8
TE Connectivity AMP Connectors 1-1775855-1	30 µin			Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	1	Up	90 °	Right	Shielded	2	Board Lock	Does Not Contain LED	Phosphor Bronze	Solder	Ethernet Jack with USB A RJ45	8	8
TE Connectivity AMP Connectors 6-1775855-3	30 µin			Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	1	Up	90 °	Right	EMI Finger Shielded	2	Board Lock	Green - Yellow	Phosphor Bronze	Solder	Ethernet Jack with USB A RJ45	8	8	Cat3
TE Connectivity AMP Connectors 4-1775855-1	0	Flash	Flash	Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	1	Up	90 °	Right	Shielded	2	Board Lock	Green Green - Orange Orange	Phosphor Bronze	Solder	Ethernet Jack with USB A RJ45	8	8
